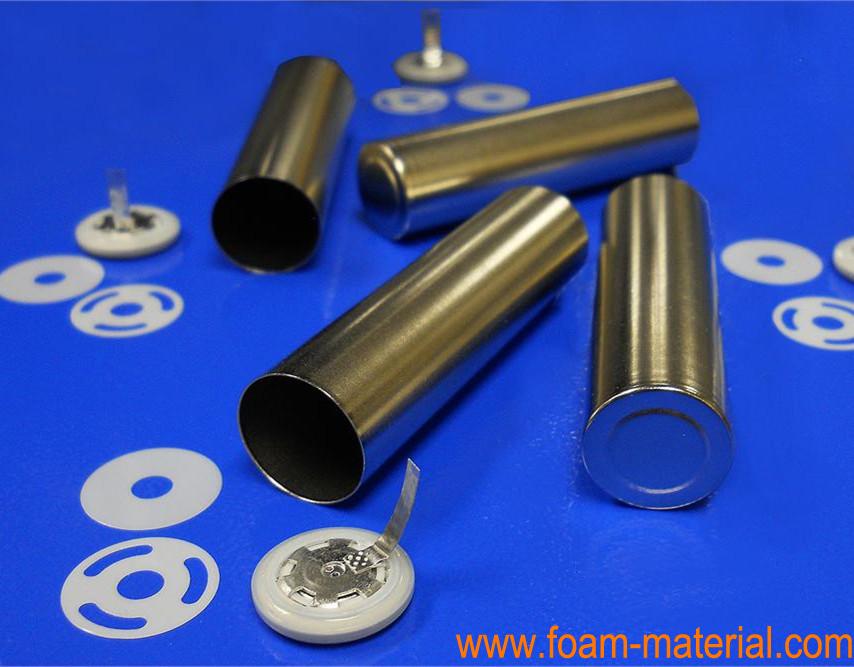

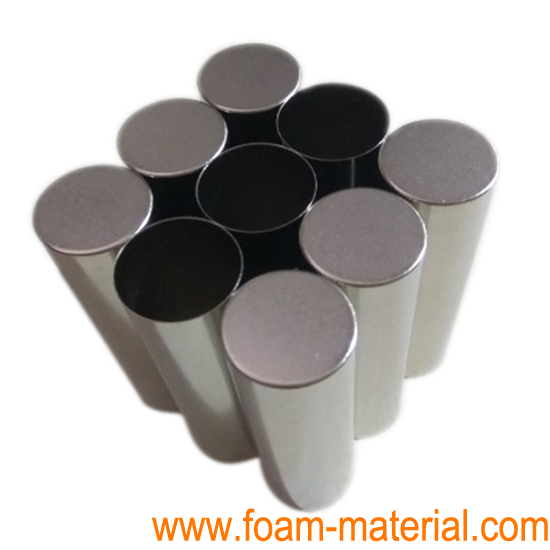

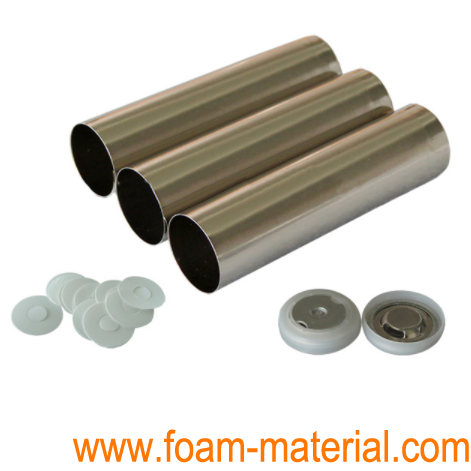

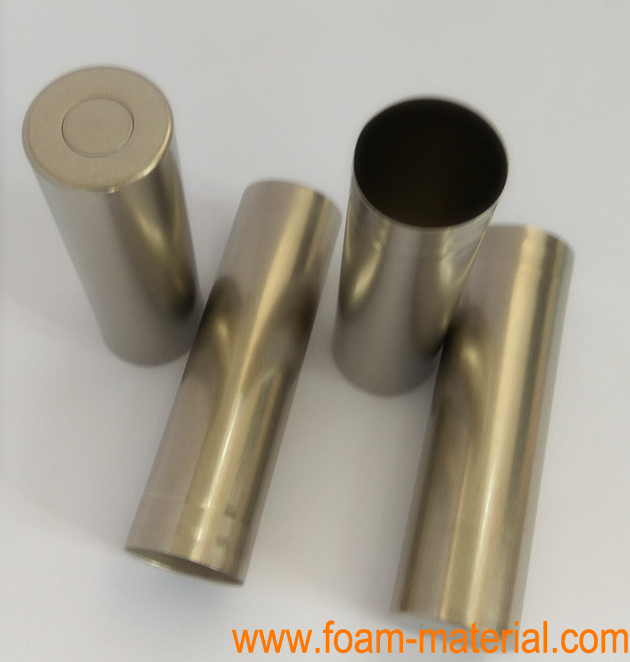

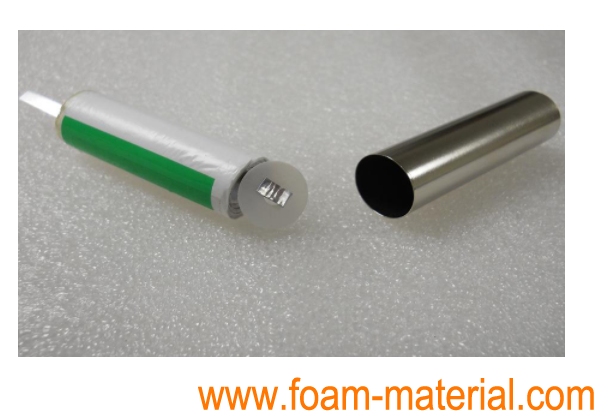

18650 Cylindrical Battery Steel Shell Case in Stock Contains a Cap and Separator

Features

Application: Used for cylindrical battery research, producing.



(100sets/package include cylinder cell case and cap)



Specifications

26650 cylinder cell cases:

Specifications
Dimensions (Dia x Height)	· Case: 26mm(OD) x 25.5mm(ID) x 68mm(H) · Top Cap: 25.5mm(D) x 5mm(H)
Materials	· case and cap made of  Nicke plated A3 steel and seal O-ring made of nylon
Weight	· 18.75 g/pcs
Note	· Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no explosion from the can)



18650 cylinder cell cases:

Specifications
Cap	Cap with Built-in PTC Thermistor
Dimensions (Dia x Height)	· Case: 18mm(OD) x 17.5mm(ID) x 67mm(H) · Top Cap: 17.5mm(D) x 4.05mm(H) · Top Insulator: 12.5mm(D) x 0.19mm(H) · Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials	·    case and cap made of  Nicke plated A3 steel and seal O-ring made of nylon
Weight	9.50 g/pcs
Note	Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure if over 2.5MPa to             ensure no explosion from the can)



32650 cylinder cell cases:

Specifications
Dimensions (Dia x Height)	· Case: 32mm(OD) x 31.5mm(ID) x 68mm(H) · Top Cap: 31.5mm(D) x 5.3mm(H)
Materials	· case and cap made of  Nicke plated A3 steel and seal O-ring made of nylon
Weight	· 28.85g/pcs
Note	· Min. order:  60 pcs per package



(We can provide other cylindrical cases according to your requirment.)
