50% Nickel and 50% Copper Nickel Copper Foam Metal Foam Sheet

Features

* Nickel Copper Foam has excellent thermal conductivity and can be widely used for heat conduction and heat dissipation of motors, electrical appliances and electronic components.

* Nickel Copper Foam has excellent electrical conductivity and never rusts.

* Nickel Copper Foam is an excellent medical filter material and water purification filter material due to its structural characteristics and its non-harmful properties to human body.

Specifications

Type	Open Cell
Purity	> 97%
Form	Sheet or Roll, depending on size & thickness

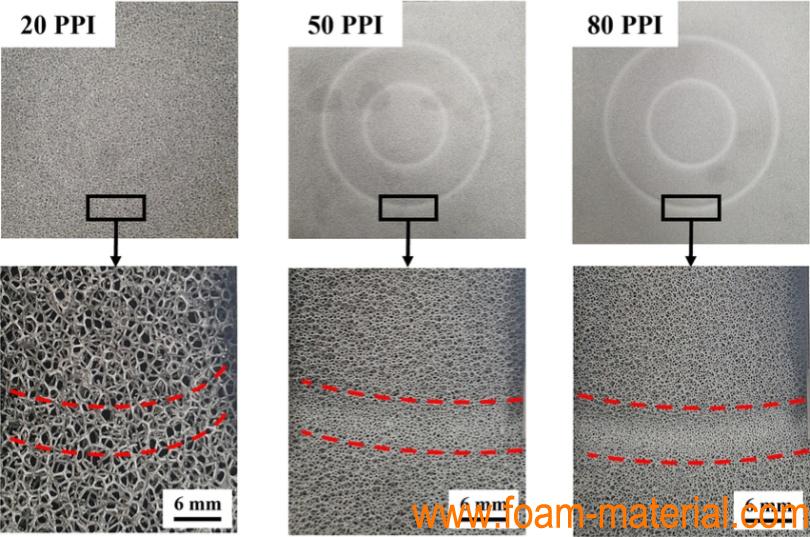

Cell Size (PPI)	5-150PPI, as per request
Thickness	Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape	can be made in different shape as per request
Porosity	50%-98%
Open Cell Rate	≥98%
Volume Density	0.1-0.8g/cm3, as per request

Reference dimensions

0.5mm*200mm*300mm	0.7mm*200mm*300mm	0.8mm*200mm*300mm
1mm*200mm*300mm	1.5mm*200mm*300mm	1.6mm*200mm*300mm
2mm*200mm*300mm	2.5 to 3mm*200mm*300mm	The size can be customized

To customize various metal foams, please click the picture below for details：
