LITH Copper Foam
Model：LITH-SS

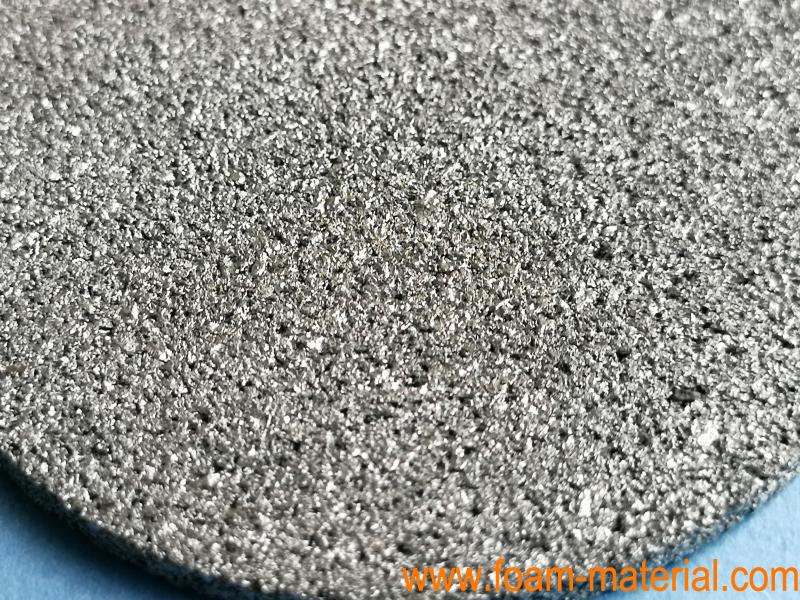

Product Picture：
Diameter: Ф5-Ф300 (mm)
Thickness: 0.5-10mm
Filtration accuracy: 0.5un-70um
Material: 302 304 304L 321 316 316L 310S
Porosity: 20-50％
Permeability: 3-1300m3/m3hkPa
Compressive strength: 3Mpa
Temperature resistance: 500℃
Maximum working pressure: 0.6Mpa
Shape: Rectangle, Circular, Tube, Cylinder
|
Foil dimension |
0.8-2.5 mm Thickness x 250mm Width x 250 mm Length |
|
Porosity |
20-50％ |
|
Density |
5 g/cm3 average |
|
Gas permeability |
(6-10)* 10-4 (L/min.cm2.kpa ) |
|
Bubbling Pressure |
3000-3700 Pa ( 0.43 - 0.55 PSI ) |
|
0.7mm*200mm*300mm |
0.8mm*200mm*300mm |
1mm*200mm*300mm |
|
1.5mm*200mm*300mm |
1.6mm*200mm*300mm |
2mm*200mm*300mm |
|
2.5mm*200mm*300mm |
3mm*200mm*300mm |
The size can be customized |
