item no :
ZOPIN-CFFBmoq :
1lead date :
In Stockpayment:
Credit Card L/C D/A D/P T/T Western Union
Carbon Felt / Graphite Felt for Flow Battery Electrode for All Vanadium Zinc Bromine Flow Battery
Characteristic
This product is a special graphite felt electrode material for all vanadium flow battery electrode. It is made of imported oxide wire needle felt through carbonization, graphitization and other processes
Because the production process of the product is processed and produced by continuous equipment, the felt surface is flat, the thickness is uniform, and the electrochemical performance is consistent everywhere. It is used in the electrode material of all vanadium liquid flow battery. It has the characteristics of small internal resistance of the stack, good and uniform electrochemical activity, good corrosion resistance, low cycle attenuation of the stack, high energy efficiency and so on.
Data analysis
1. The thickness of zopin's electrode graphite felt is 4.35mm, reaching 1400 turns of voltage, and the efficiency can still be maintained at more than 90%.
2. The thickness of SGL's battery felt is 5.2mm, and the efficiency is > 90% when the voltage reaches 1000 cycles.
3. Another domestic company, the voltage efficiency continued to decline rapidly and stopped the test after 200 laps.
Technical indicators:
General size |
Length(m) |
10/20/50/100 |
Width (m) |
1.22/1.35/1.42/1.45 |
|
thickness(mm) |
2.2/3.0/3.6/4.2/4.8/5.0/5.6/6.0/7.0 |
|
Maximum size |
Length(m) |
100 |
width(m) |
1.45 |
|
thickness(mm) |
7.0 |
|
Other Size |
Cut according to customer requirements |
Carbon content% |
>98.8 |
Ash% |
<0.3 |
volume density(g/cm3) |
0.08-0.10 |
specific surface(m2/g) |
2.3-4 |
Felt shedding rate(μg) |
2-3 |
Oxidation rate (weight loss / hour @ 600C in air) |
<2.6% |
porosity% |
85-95 |
Surface resistance(mΩ/cm2) |
0.165-0.193 |
internal resistance/mΩ |
15.3-26.7 |

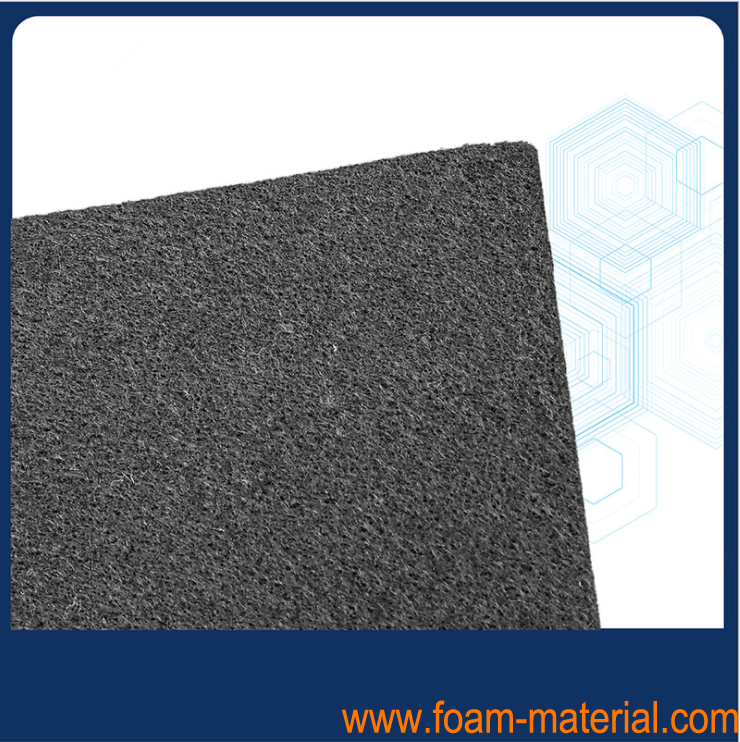

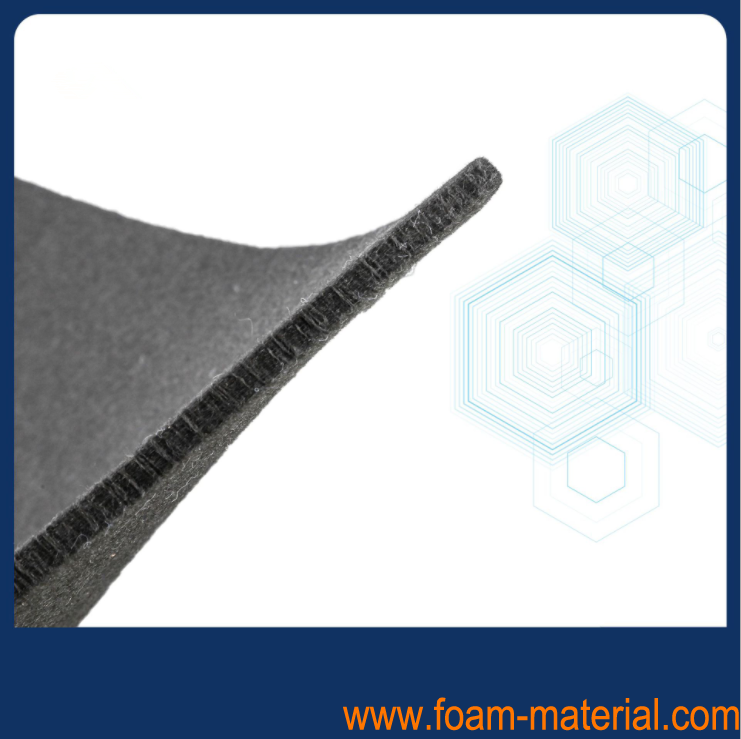

Product Picture
Product features
