Customizable High Porosity Cu Copper Foam Electrode Sheet

Introduction

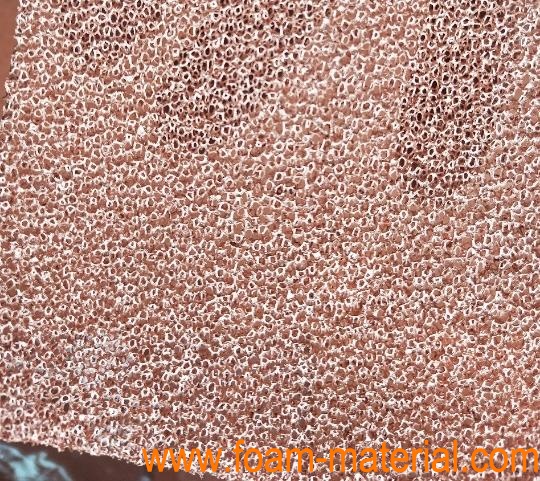

Apart from Aluminum, Copper is the most widely used material for making heat sinks, because properties of copper make it suitable for the purpose.Micro-porous copper foam is like an open cell structure, with an extraordinarily large number of interconnected pores distributed uniformly throughout the base copper material.

Advantage:

1. Copper foam  has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.

2. The copper foam can be also used as Heat sink materials, heat absorption materials, chemical catalyst carrier, electromagnetic shielding materials, filtration materials, damping materials, battery electrode materials, deadening, high-grade decorative materials.

Specifications

Type	Open cell
Purity	> 99%
Form	Sheet or Roll, depending on size & thickness

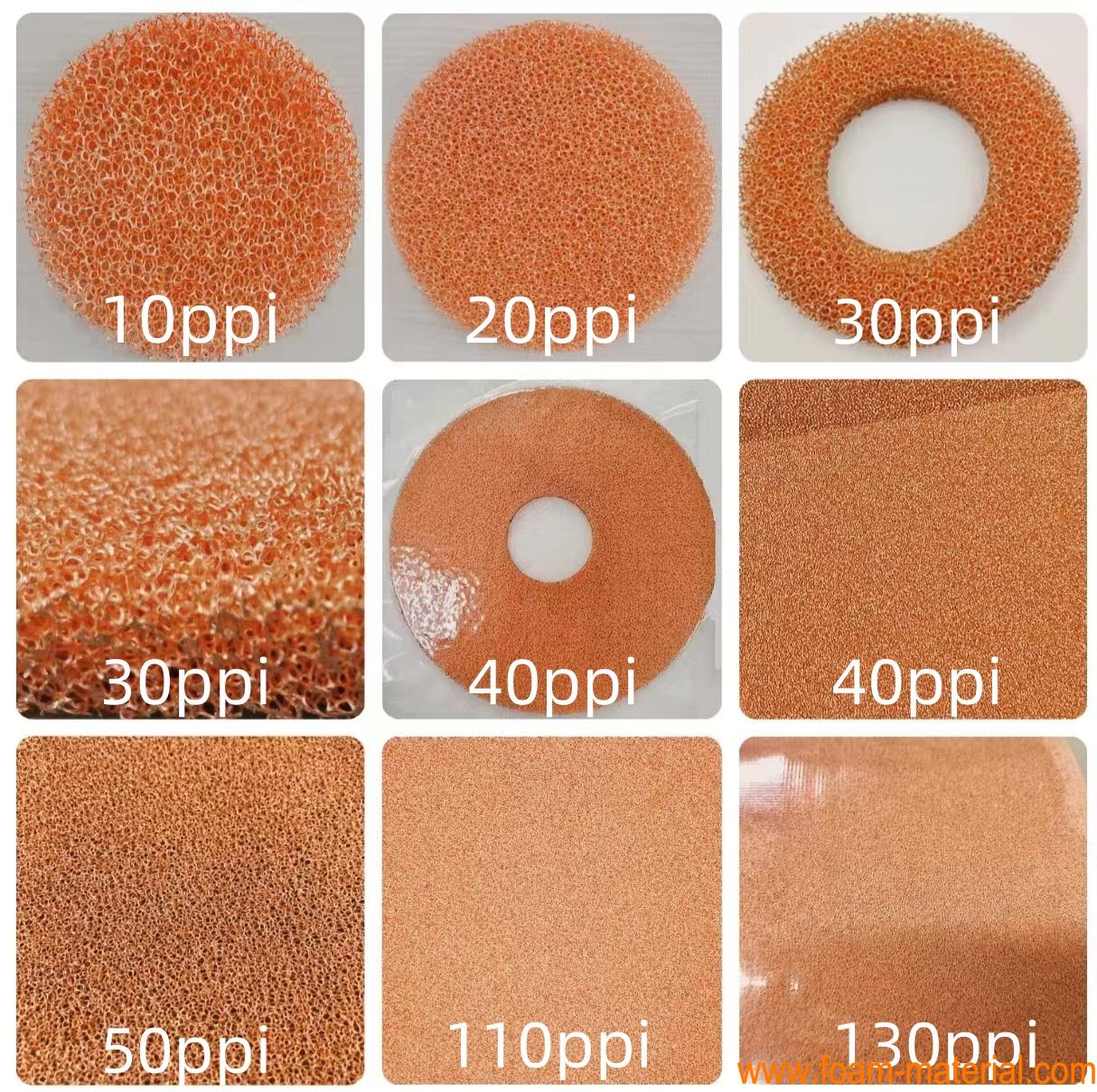

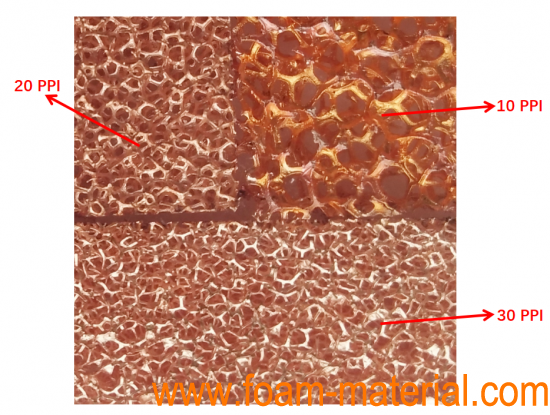

Cell Size (PPI)	10-150PPI, as per request
Thickness	Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape	Standard: 500*500mm/ 200*300mm; can be made in different shape as per request
Porosity	95%-98%
Open Cell Rate	≥98 %
Volume Density	>0.1g/cm3, as per request
Surface Density	200-2500 g/m ^2, as per request
Thermal Conductivity (Theoretical)	>6W/M.K
Mechanical Strength (Theoretical)	≥2.5MPa
Tensile Strength (Theoretical)	5-18MPa

Dimension (Thickness* Length*Width)
