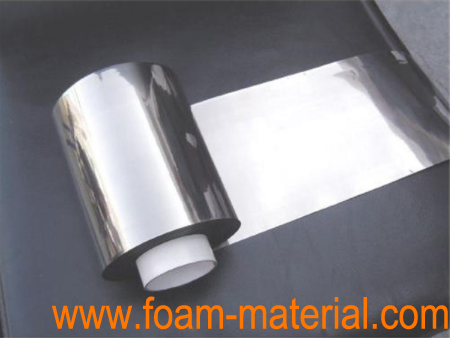

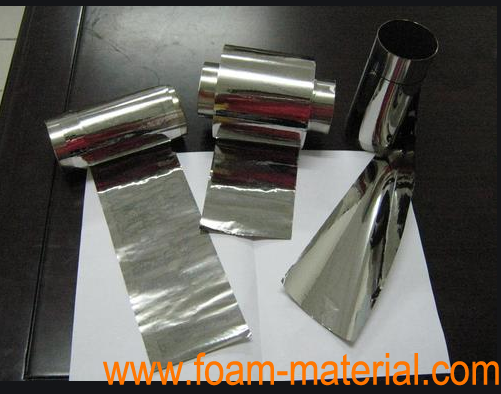

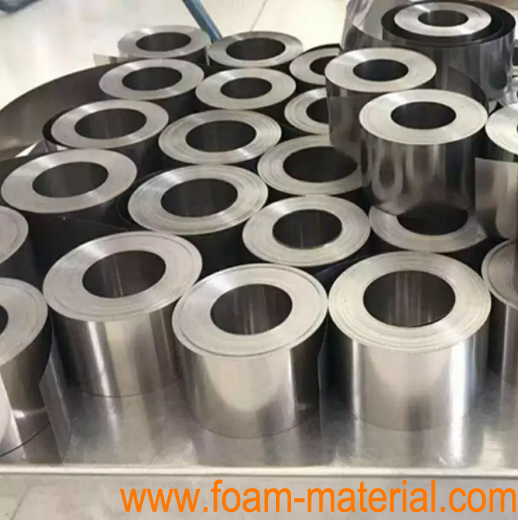

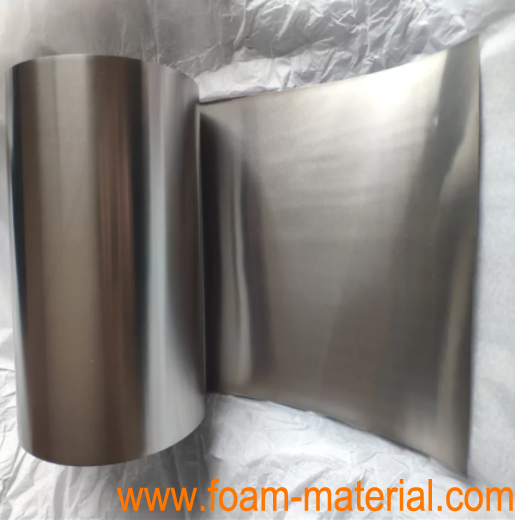

Nickel Foil Ni Foil Thickness is 0.02mm-0.2mm Accept customized

Introduction

Nickel, a silvery white, hard, ductile, and ferromagnetic metallic element, is highly polished and resistant to corrosion. Good ductility and medium hardness. Nickel is a silver white metal, which has magnetic properties and good plasticity.Thin and wide pure nickel foil tape has been widely used in electromagnetic shielding, touch screen, special transformers, special batteries, lithium batteries, energy storage batteries, high-end speakers and other production fields. The manufacturer sells directly, the quality assurance, conforms to the international standard, can export.

Coarsening nickel foil: the surface of pure nickel foil is treated by electrochemical method, so that a micro rough structure is obtained on the surface of the workpiece, which changes from hydrophobicity to hydrophilicity, so as to improve the binding force between the coating and the surface of the product. The purpose of coarsening is to improve the adhesion and adsorption properties of metal surface and other materials.

Features:

The electrochemical deposition method is used to directly produce nanocrystalline nickel foil with high purity, and its magnetic and mechanical properties are better than traditional rolled thin strips. The production of electrodeposited alloy foil adopts a rotating cathode roller, which peels off while depositing. The product width is large and the thickness is adjusted at will. Electrodeposition products are especially suitable for thin and wide high-performance soft magnetic foil tape materials that are urgently needed in the electrical and electronic industries.

Product Usage:
Pure nickel foil is mainly used in electromagnetic shielding, touch screens, special transformers, special batteries, lithium batteries, energy storage batteries, high-end speakers and other production fields.

Specifications

Chemical composition (wt%): Ni (purity: 99.98%)
Physical properties:
Density: 8.9 g / cm3
Melting point: 1500 ~ 1600 ° C
Tensile strength: 1030 RM / MPa
Elongation after fracture: 1.0 mm /%
Resistivity: 0.076 Ω· mm2/m
Hardness: about 300hv (soft state ≤ 150hv and hard state > 450hv)
