Size Customizable 3D Graphene Foam Sheet

Wechat:cqn18259791571

Skype and Whatsapp :+8615663684452

Email: Daisy@foam-material.com



  • item no :

    ZOPIN
  • moq :

    1
  • lead date :

    In Stock
  • payment:

    Credit Card L/C D/A D/P T/T Western Union
product details


Size Customizable 3D Graphene Foam Sheet




Features

The 3D Graphene Foam is made via chemical vapor deposition (CVD) processing. In course of CVD fabrication of graphene hydrogen and methane gases are introduced into a furnace that heats to 1000° Celsius. In the furnace is a nickel or copper film which captures a mono or multi-layer or graphene as the furnace is heated and the methane decomposes.

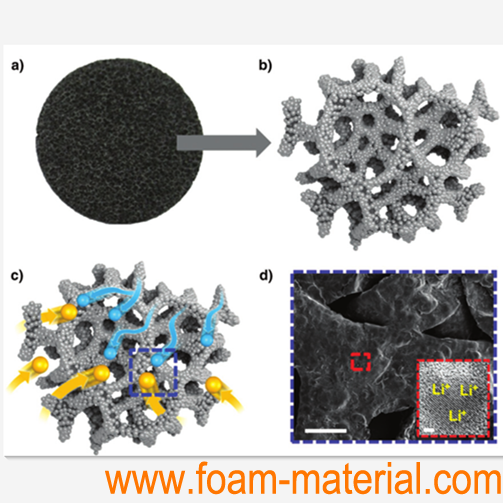

To create CVD Graphene Foam, instead of using a thin sheet of nickel to capture graphene, nickel or copper foam is used. The metal foam captures graphene in a similar foam structure. The metal skeleton is then etched away and left is a visible, porous 3D graphene foam structure.

This structure has a high surface area, which opens several exciting applications for Graphene Foam while maintaining most of two-dimensional graphene’s properties1.CVD processing of Graphene Foam opens a cost-effective route for engineering a new class of ultra-light, highly conductive graphene-based materials with exceptional mechanical strength, flexibility, and elasticity.

The macroscopic size of the sample: does not exceed 2 cm'in width and 4 cm in length,

The macroscopic color:grey.

Advantages

1. It has good conductivity and is an excellent light porous conductive carrier.

2. On this substrate, we can grow a variety of oxide and hydroxide nanoarrays such as nickel oxide, cobalt oxide, cobalt trioxide, ferric oxide, cobalt hydroxide, nickel hydroxide, tungsten oxide, vanadium oxide, titanium oxide and so on.



Specifications

Sample size

100*100mm  The size can be customized

Thickness

1.2 mm-1.6mm

Density

4 mg/cm3

Pore Size

580 microns

Packing

 in sealed membrane box

Surface density
0.5-0.9 mg/cm2.
Size of branches
50-200 microns
Characteristic of  large aperture
200-500 microns.
Thermal conductivity
>6w/(m2k)
Standard PPI value
110


0.1mm*200mm*300mm

0.2mm*200mm*300mm

0.3mm*200mm*300mm

0.4mm*200mm*300mm

0.5mm*200mm*300mm

0.6mm*200mm*300mm

0.7mm*200mm*300mm

0.8mm*200mm*300mm

0.9mm*200mm*300mm

1mm*200mm*300mm

1.6mm*20mm*300mm

The size can be customized




Graphene Foam

graphene foam


graphene foam


graphene foam



To customize various metal foams, please click the picture below for details:






Aiuminum Foam


Copper Foam





Nickel Foam





Carbon Foam





   3D Graphene Foam

Sliver Foam

                Ti Foam
