99.5% Purity Porous Iron Nickel Foam Fe-Ni Alloy Foam

Introduction

Iron-nickel Foam, also known as Fe-Ni foam, is a porous material made from a combination of iron (Fe) and nickel (Ni) metals. It is characterized by its open-cell, sponge-like structure, which consists of interconnected metal struts and void spaces. This foam material is known for its unique properties and finds applications in various industries. It features ultra-light quality, good sound absorption, electron wave shielding, processability, fire resistance as well and strong thermal conductivity.

Specifications

Type	Open cell
Purity	> 97%
Form	Sheet or Roll, depending on size & thickness

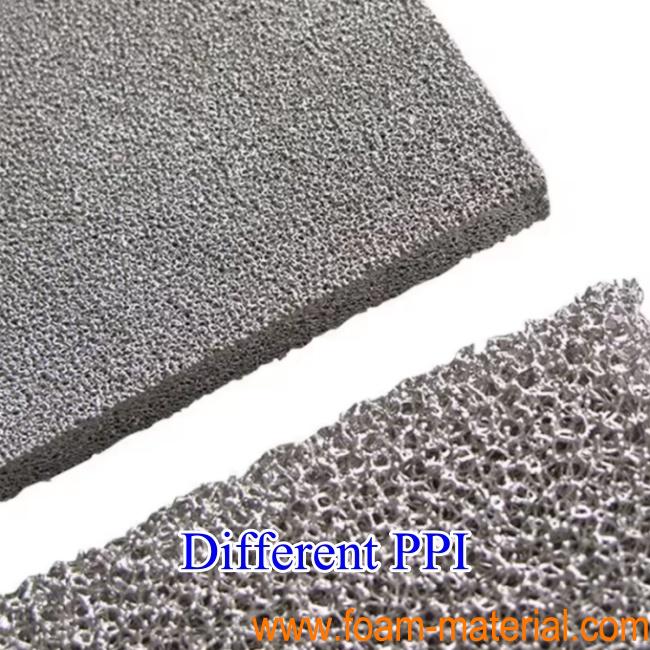

Cell Size (PPI)	5-150PPI, as per request
Thickness	Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape	can be made in different shape as per request
Porosity	95%-98%
Open Cell Rate	≥98%
Volume Density	0.1-0.8g/cm3, as per request

和

Dimension (Thickness* Length*Width)

0.5mm*200mm*300mm	1mm*200mm*300mm	2mm*200mm*300mm
3mm*200mm*300mm	4mm*200mm*300mm	5mm*200mm*300mm
6mm*200mm*300mm	7mm*200mm*300mm	8mm*200mm*300mm
9mm*200mm*300mm	10mm*20mm*300mm	The size can be customized

和

To customize various metal foams, please click the picture below for details：

Copper Foam	Nickel Foam	Ti Foam	Aluminum Foam
Iron Nickel Foam	Carbon Foam	Silver Foam	Cobalt Foam
