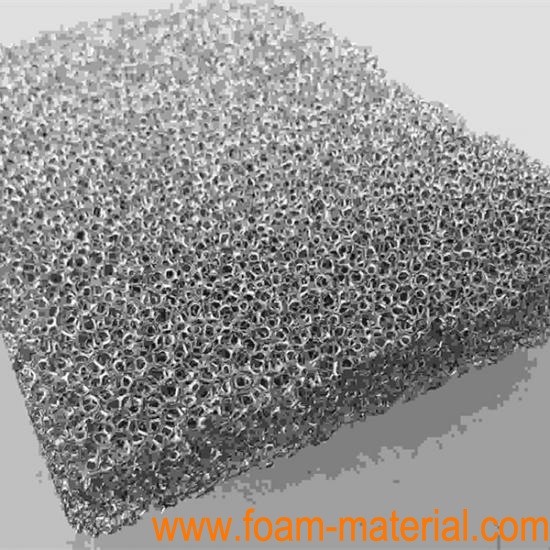

High Purity Iron Nickel Metal Foam Sheet

Features

Applicable to super capacitor, nickel hydrogen battery, nickel cadmium battery, fuel cell

Specifications

Type	Open cell
Purity	> 97%
Form	Sheet or Roll, depending on size & thickness

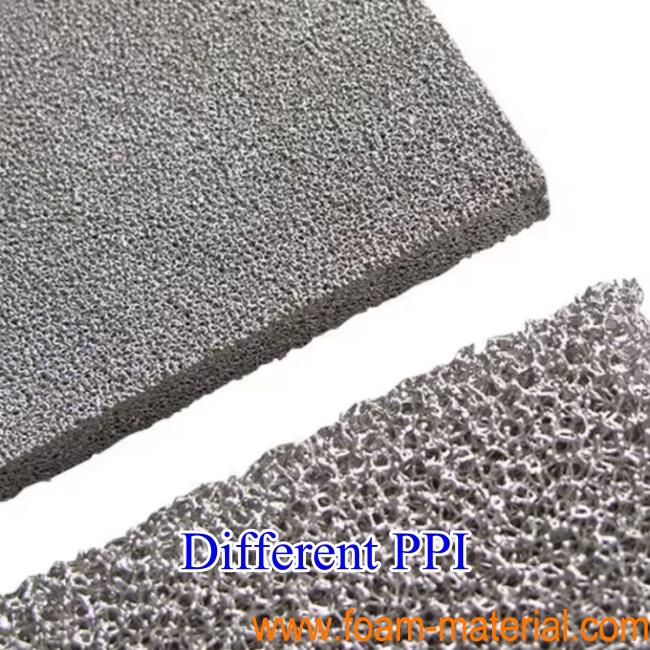

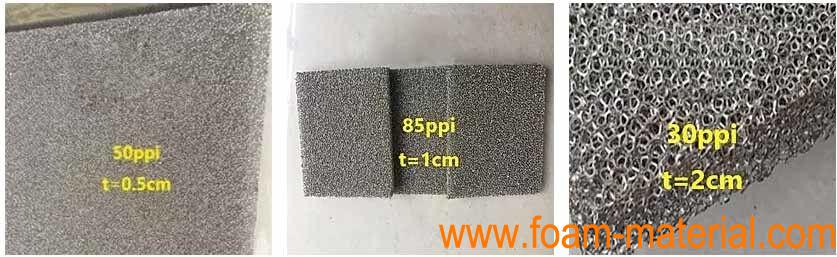

Cell Size (PPI)	5-150PPI, as per request
Thickness	Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape	can be made in different shape as per request
Porosity	95%-98%
Open Cell Rate	≥98%
Volume Density	0.1-0.8g/cm3, as per request

0.5mm*200mm*300mm	1mm*200mm*300mm	2mm*200mm*300mm
3mm*200mm*300mm	4mm*200mm*300mm	5mm*200mm*300mm
6mm*200mm*300mm	7mm*200mm*300mm	8mm*200mm*300mm
9mm*200mm*300mm	10mm*20mm*300mm	The size can be customized

To customize various metal foams, please click the picture below for details：
