item no :
ZOPIN-Ge Metal Ingotmoq :
1lead date :
In Stockpayment:

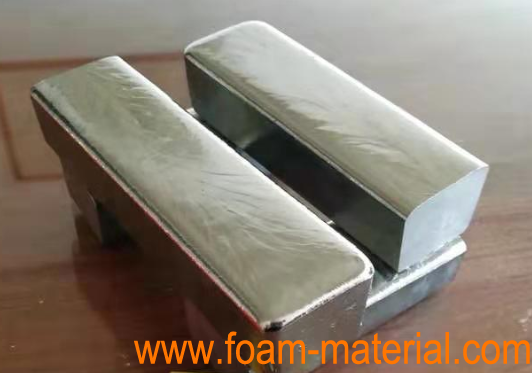

Credit Card L/C D/A D/P T/T Western UnionBuy 5N 99.999% Germanium Ingot Ge Metal Ingot
Introduction
Material name
Purity
size
High purity Germanium
5N-7N
Germanium Ingot
5N
Germanium powder
5N
100,200,325 mesh
Germanium Dioxide
5N-6N
General Information
Characteristics:
Lustrous, hard, grayish-white solid metalloid in the carbon group, chemically similar to its group neighbors tin and silicon. Purified germanium is a 'p-type' semiconductor material. Conductivity depends largely on added impurities. Attacked by nitric acid and aqua regia, but stable in water, acids, and alkalies in absence of dissolved oxygen, low toxicity.
Applications:
Isolated germanium is mainly used as a semiconductor material for transistors. The first generation of semiconductors were based solely on germanium. However, most of today’s semiconductor production is based on silicon and germaniums use in electronics are in fibre-optic systems, infrared optics and in solar cell applications..
2. GENERAL PROPERTIES
Symbol:
Ge
Cas:
7440-56-4
Atomic Number:
32
Atomic Weight:
72.59
Density:
5.323 gm/cc
Melting Point:
937.4 oC
Boiling Point:
2830 oC
Thermal Conductivity:
0.602 W/cm/K @ 302.93 K
Electrical Resistivity:
microhm-cm @ 20 oC
Electronegativity:
1.8 Paulings
Specific Heat:
0.077 Cal/g/K @ 25 oC
Heat of Vaporization:
68 K-cal/gm atom at 2830 oC
Specification
Ge%
99.999min
AI(ppm)
0.1max
Cu(ppm)
0.2max
Fe(ppm)
0.1max
Pb(ppm)
0.1max
Ni(ppm)
0.2max
Co(ppm)
0.2max
As(ppm)
0.1max
Total content of AI, Cu, Fe, Pb, Bi,Na, Si, S,Se, As, Mg (ppm)
10max
Packing&Delivery
First step:
Packed in vacuum polyester bag/ plastic bag.
Second step:
Packed in vacuum polyester bag or aluminum foil bag again.
Third step:
Wrapped with bubble, load to the carton and seal the carton
High purity Germanium Metal
1. MATERIAL OVERVIEW
Impurities in ppm
Generally packed in 1 kg/bag or bottle, also could do according to customer request.
