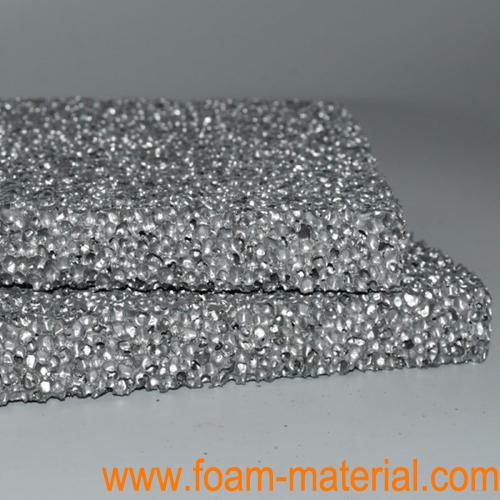

Customizable Size Al Metal Foam Closed Cell Aluminum Foam Material



Introduction

Aluminum foam has many special properties. It can be widely used in aerospace, aviation, high-speed trains, urban rail trains, shipbuilding, high-speed railways, construction, tunnels and noise barriers along the way.

It has light weighthigh sound absorption, high shock absorptionhigh absorption energy, high electromagnetic shielding performance, excellent heat insulation, high temperature resistance, and non combustible combustion characteristics. It has unique environmental friendliness.


Specifications

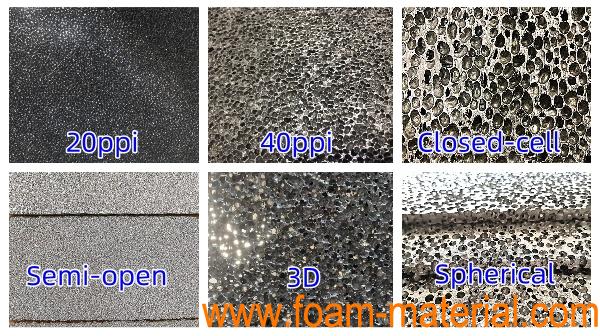

Type

Available in Closed-cell, Open-cell and Micro-open-cell

Purity

> 97%

Form

Sheet or Roll, depending on size & thickness

Cell Size (PPI)

10-150PPI, as per request

Thickness

Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request

Size & Shape

can be made in different shape as per request

Porosity

70-90%

Open Cell Rate

55-65%

Volume Density

0.25-0.75g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Noise reduction coefficient NRC

>0.75

Fire-proof level

A1

Energy absorption

8J/m3-30J/M3

Compressive strength

3Mpa-17Mpa

Flexural strength

3Mpa-15Mpa


Reference dimensions

2mm*200mm*300mm

3mm*200mm*300mm

4mm*200mm*300mm

5mm*200mm*300mm

6mm*200mm*300mm

7mm*200mm*300mm

8mm*200mm*300mm

9 to 10mm*200mm*300mm

The size can be customized

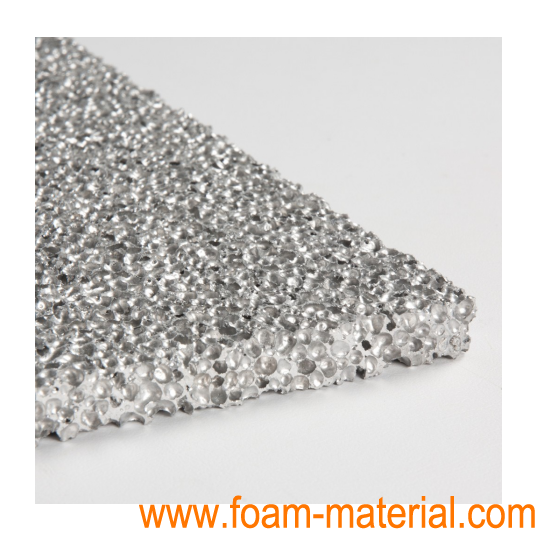

Open Cell Aluminium Foam

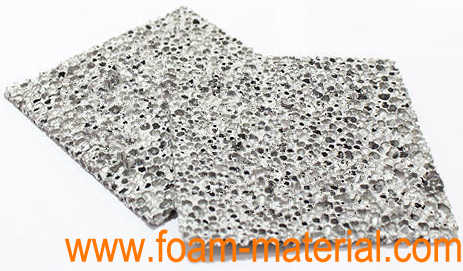

Aluminum Foam


Open Cell Aluminium Foam


Open cell Aluminum Foam



To customize various metal foams, please click the picture below for details:






Aiuminum Foam


Copper Foam





Nickel Foam





Carbon Foam





   3D Graphene Foam

Sliver Foam

                Ti Foam
