Credit Card L/C D/A D/P T/T Western UnionSize Customizable Semi-Open Cell Aluminium Al Metal Foam
Introduction

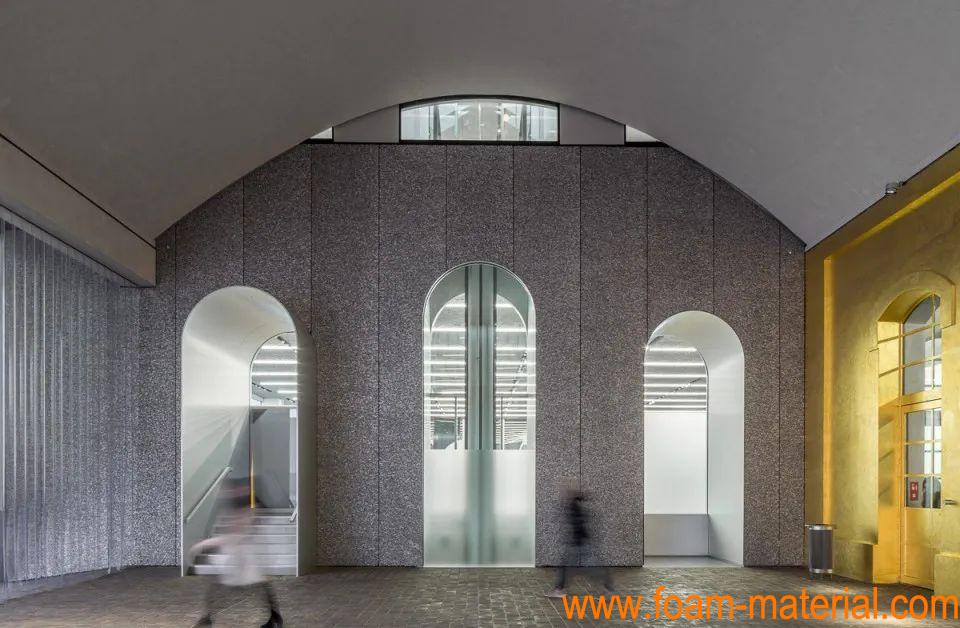

Aluminum foam has many special properties. It can be widely used in aerospace, aviation, high-speed trains, urban rail trains, shipbuilding, high-speed railways, construction, tunnels and noise barriers along the way.
It has light weight, high sound absorption, high shock absorption, high absorption energy, high electromagnetic shielding performance, excellent heat insulation, high temperature resistance, and non combustible combustion characteristics. It has unique environmental friendliness.
Specifications
Type Semi-Open Cell
Purity
> 97%
Form
Sheet or Roll, depending on size & thickness
Cell Size (PPI)
0.2mm
Thickness
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape
can be made in different shape as per request
Porosity
55-70%
Open Cell Rate
55-70%
Volume Density
0.25-0.75g/cm3, as per request
Surface Density
200-2500 g/m ^2, as per request
Noise reduction coefficient NRC
>0.75
Fire-proof level
A1
Energy absorption
8J/m3-30J/M3
Compressive strength
3Mpa-17Mpa
Flexural strength
3Mpa-15Mpa
Reference dimensions
2mm*200mm*300mm
3mm*200mm*300mm
4mm*200mm*300mm
5mm*200mm*300mm
6mm*200mm*300mm
7mm*200mm*300mm
8mm*200mm*300mm
9 to 10mm*200mm*300mm
The size can be customized

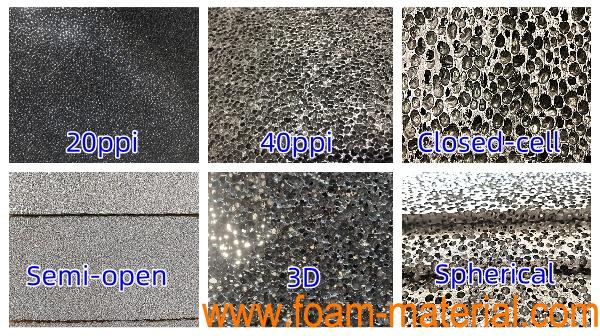

To customize various metal foams, please click the picture below for details:
