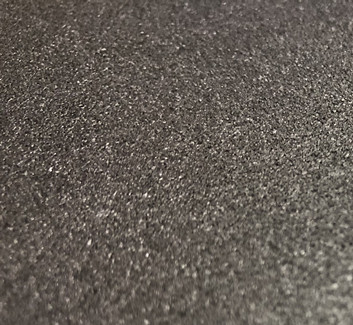

High purity Ti Foam Titanium Metal Foam

Introduction

Filtration accuracy: 0.45um-100um

Porosity: 28-50%

Transmittance rate: 0.02-20M3cm/m2h.mmH2O

Compressive strength: 0.5-1.5Mpa

Temperature resistance: 280 ° C (wet state)

Maximum working pressure range: 0.6Mpa

Precision: 0.22 µm 0.45 µm 1 µm 3 µm 5 µm 10 µm 20 µm 30µm  50 µm 80 µm 100 µm

Reference dimensions

0.7mm*200mm*300mm	0.8mm*200mm*300mm	0.9mm*200mm*300mm
1mm*200mm*300mm	1.1mm*200mm*300mm	1.2mm*200mm*300mm
1.3mm*200mm*300mm	1.4mm*200mm*300mm	1.5mm*200mm*300mm
1.6mm*200mm*300mm	1.7mm*20mm*300mm	1.8mm*200mm*300mm
1.9mm*200mm*300mm	2 to 3mm*200mm*300mm	The size can be customized

To customize various metal foams, please click the picture below for details：
