Technical Datasheet
NICKEL WIRE MESH SERIES
|
Material Description: Pure nickel is widely utilized in reducing media environments, exhibiting outstanding corrosion resistance across a broad spectrum of acidic and alkaline conditions. Furthermore, pure nickel possesses exceptional high-temperature stability, superior mechanical properties, and excellent thermal/electrical conductivity, making it an ideal choice for critical industrial and laboratory functions.
|

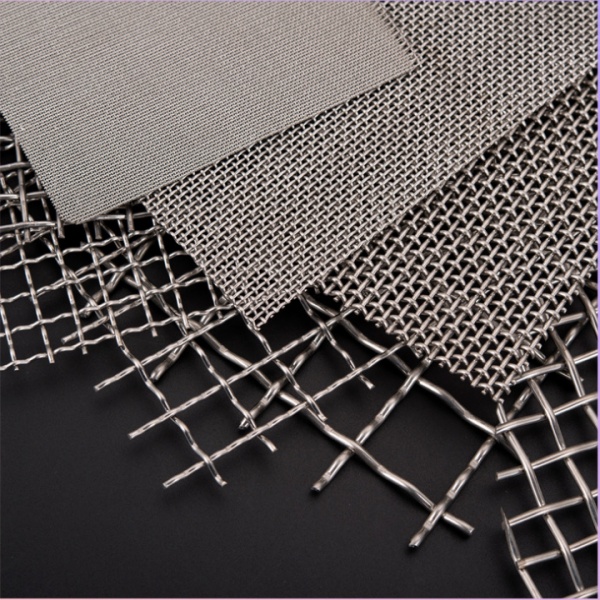

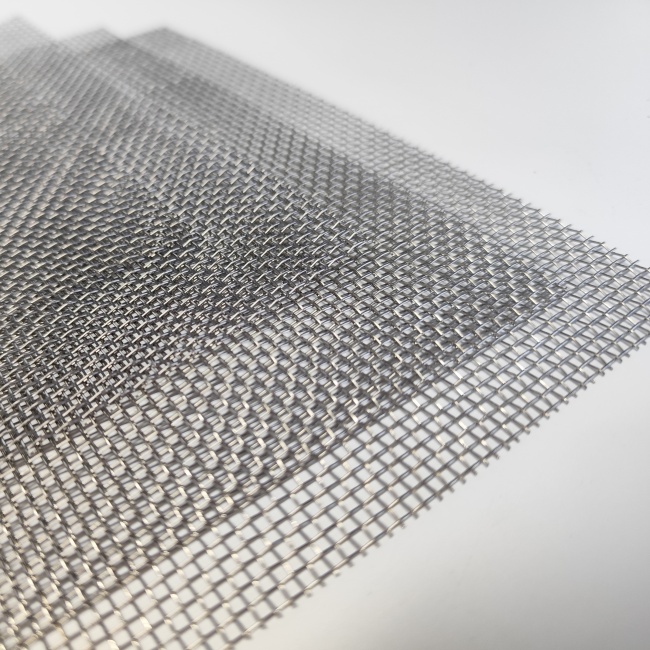

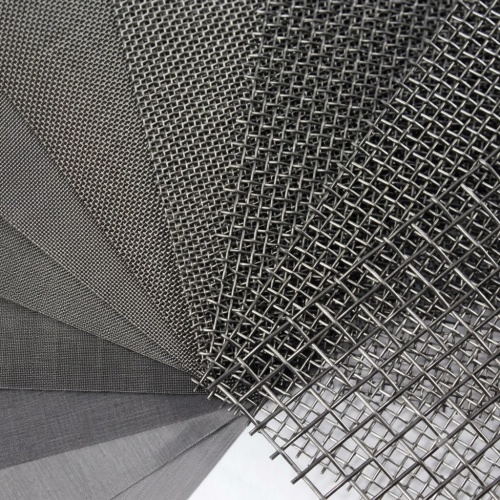

Nickel Woven Mesh
Precision woven square openings for optimal filtration and separation.
|
Nickel Stretched Mesh
Expanded diamond structures providing excellent structural integrity.
|
Nickel Perforated Mesh
Uniform punched circular patterns for robust mechanical applications.
|
General Technical Parameters
| Parameter | Specification Details |
| Material Grades | N4 (Equivalent to 9Ni201) / N6 (Equivalent to Ni200) |
| Mesh Count Range | 1 - 2300 Mesh |
| Width Range | 5 mm - 5000 mm |
Chemical Composition Matrix
| Element | Ni + Co | C | Cu | Si | Mn | S | P | Fe | Total Imp. |
| Value (%) | ≥ 99.5 | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | ≤ 0.05 | ≤ 0.005 | ≤ 0.002 | ≤ 0.1 | ≤ 0.5 |
Standard Specification Dimensional Grid
| Mesh | Wire (mm) | Aperture (mm) | Mesh | Wire (mm) | Aperture (mm) |
| 10 | 0.50 | 2.04 | 80 | 0.12 | 0.18 |
| 16 | 0.35 | 1.20 | 80 | 0.18 | 0.13 |
| 20 | 0.35 | 0.97 | 100 | 0.10 | 0.154 |
| 30 | 0.35 | 0.64 | 100 | 0.15 | 0.10 |
| 40 | 0.15 | 0.485 | 120 | 0.08 | 0.11 |
| 50 | 0.15 | 0.358 | 150 | 0.06 | 0.10 |
| 60 | 0.12 | 0.30 | 180 | 0.05 | 0.09 |
| 60 | 0.25 | 0.17 | 200 | 0.05 | 0.077 |
| 80 | 0.10 | 0.20 | 250 | 0.04 | 0.06 |
| 300 | 0.032 | 0.05 | 350 | 0.03 | 0.04 |
| 363 | 0.032 | 0.038 | 400 | 0.027 | 0.036 |
