Type

Open cell

Purity

> 99.99%

Form

Sheet or Roll, depending on size & thickness

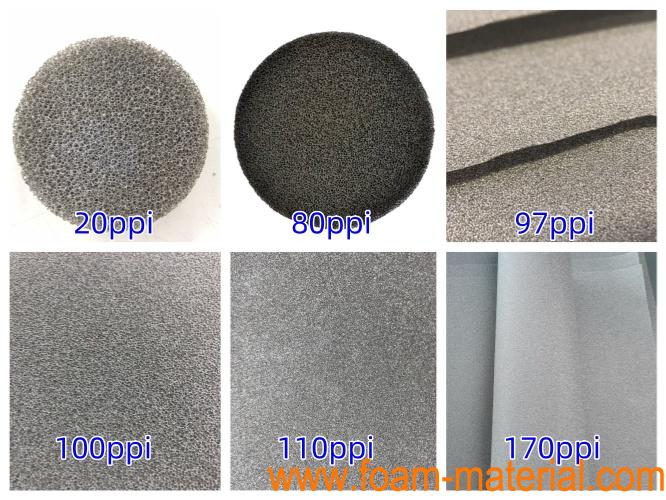

Cell Size (PPI)

5-1300PPI, as per request

Thickness

Standard: 0.08-30mm

Size & Shape

Standard: 500*500mm/ 200*300mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-3500 g/m ², as per request

Standard: 320±20g/m²

Thermal Conductivity (Theoretical)

>3W/M.K

Mechanical Strength (Theoretical)

≥2~7MPa

Average Tensile Strength (N/20mm)

Vertical ≥ 30, horizontal ≥ 25

Temperature Resistance (Theoretical)

≥500℃,as per request

Appearance

Silver gray, without defects such as black spots, blind holes, through holes, cracks, etc

Chemical Composition

Ni: ≥99.5% Fe≤0.020% C≤0.030% P≤0.010%  S≤0.008%  Si≤0.005% Cu≤0.010%

Shielding Effectiveness

200KHz

40dB~50dB

Flexibility

Vertical ≥ 5, horizontal ≥ 15

Elongation rate (%)

Vertical ≥ 5, horizontal ≥ 10

Electrical resistivity (m Ω/100 * 10m²)

Vertical ≤ 65, horizontal ≤85
