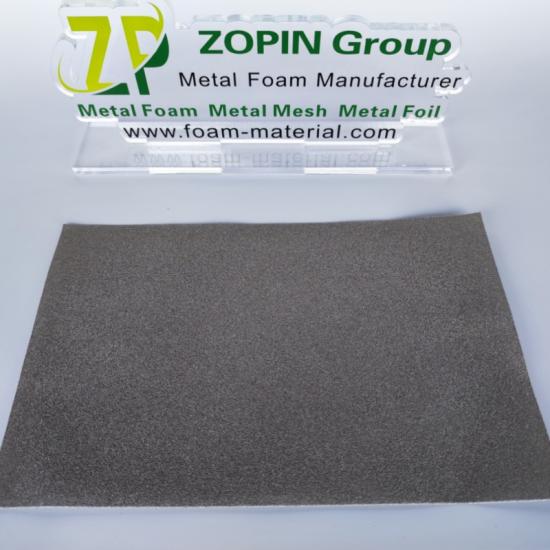

High Porosity Porous Nickel Ni Metal Foam Sheet


Introduction

Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.

Usefulness: (Various shapes can be produced)

1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.

2. Filtration materials of air / oil / smoke etc.

3. Porous electrode in Galvano-Chemistry Engineering.

4. Elimination of heat.

5. Amortization materials.

6. Noise-Absorbing and Vibration-Absorbing materials.

7. Electromagnetic shielding materials.

8. Catalyst carrier.

9. Precious metal recovery.

Specifications

Type

Open cell

Purity

> 99%

Form

Sheet or Roll, depending on size & thickness

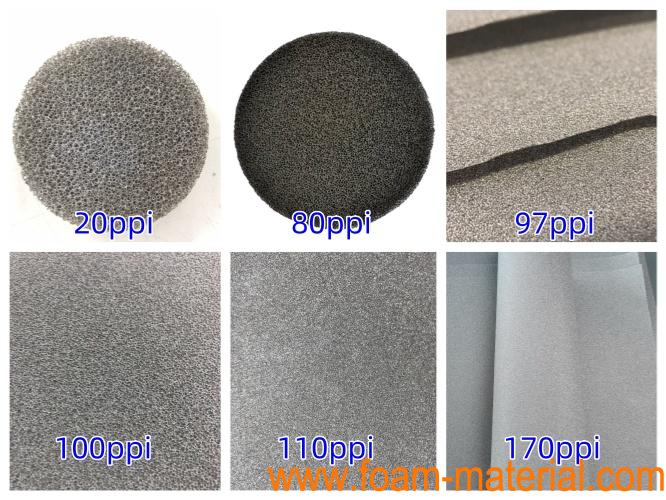

Cell Size (PPI)

10-150PPI, as per request

Thickness

Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request

Size & Shape

Standard: 500*500mm/ 200*300mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Thermal Conductivity (Theoretical)

>3W/M.K

Mechanical Strength (Theoretical)

≥2~7MPa

Tensile Strength (Theoretical)

8~50MPa

Temperature Resistance (Theoretical)

≥500℃


0.1mm*200mm*300mm

0.2mm*200mm*300mm

0.3mm*200mm*300mm

0.5mm to 1.7mm*200mm*300mm

2mm*200mm*300mm

3 to 4mm*200mm*300mm

5mm*200mm*300mm

6mm*200mm*300mm

8mm*200mm*300mm

10mm*200mm*300mm

10 to 20mm*200mm*300mm

The size can be customized

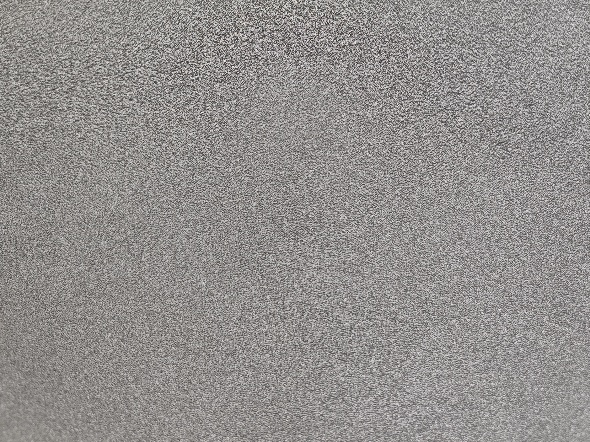

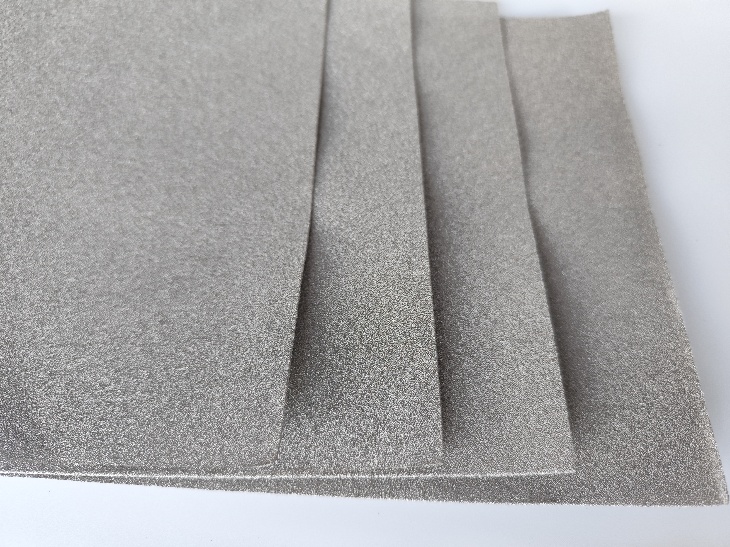

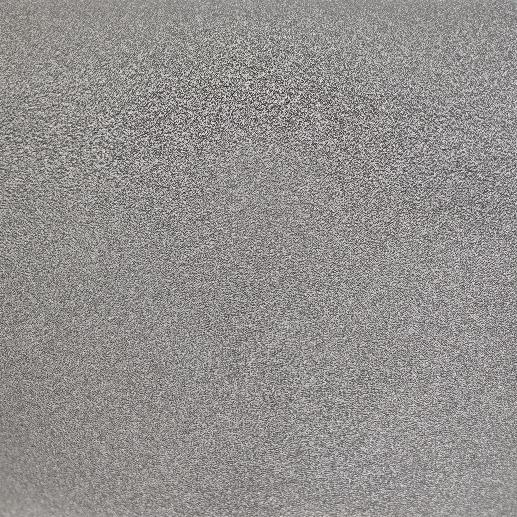

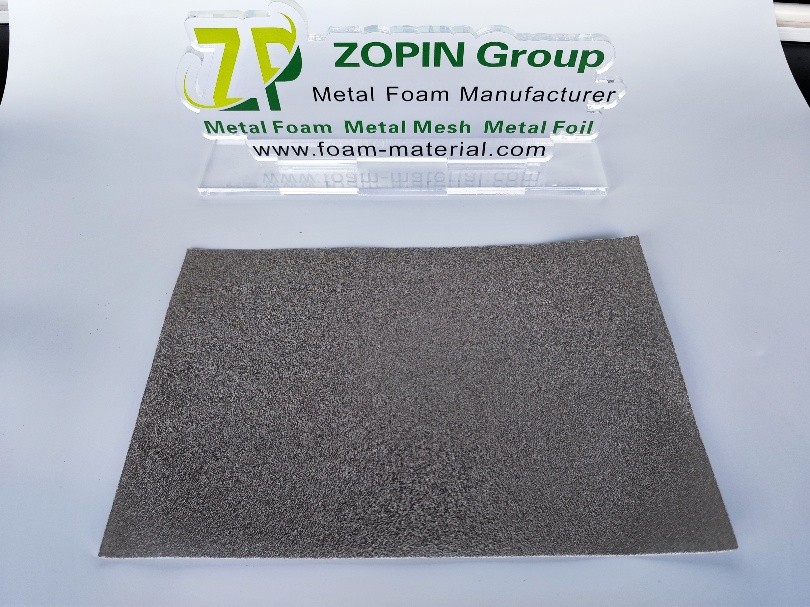

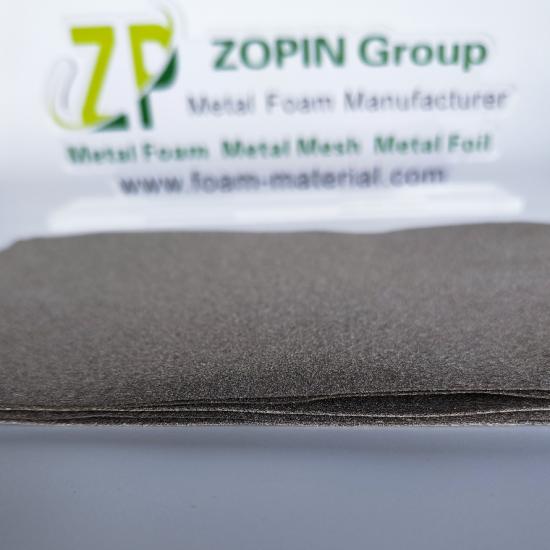

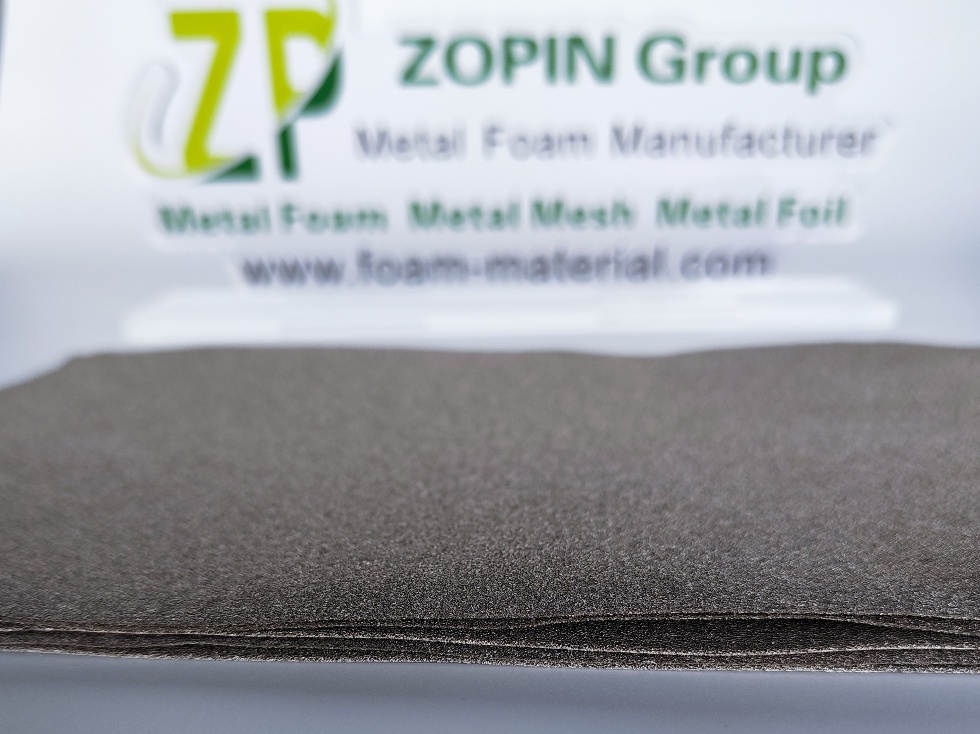

Nickel Foam


Nickel Foam


Nickel Foam


Nickel foam



Nickel Foam
