item no :
ZOPIN-NF3moq :
1lead date :
In Stockpayment:
Credit Card L/C D/A D/P T/T Western Union

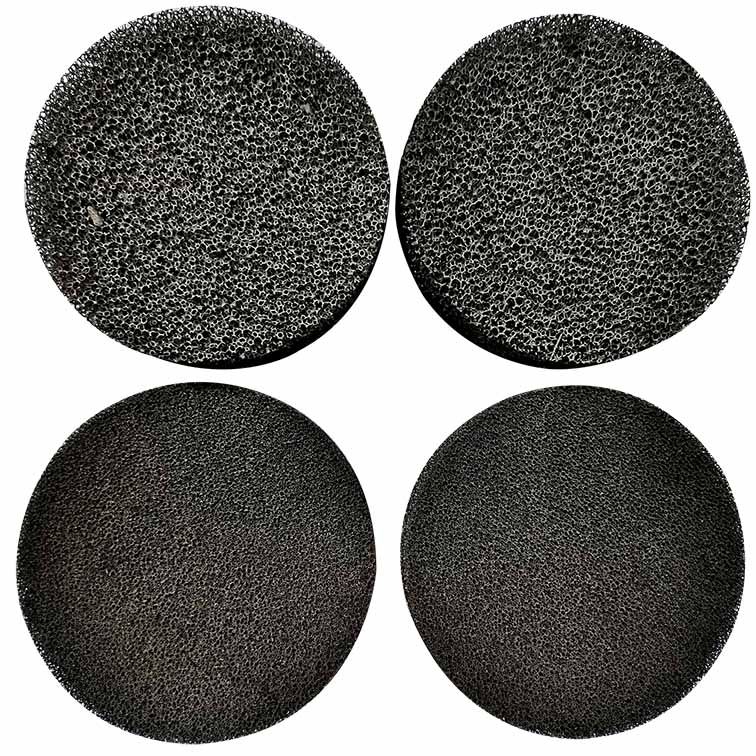

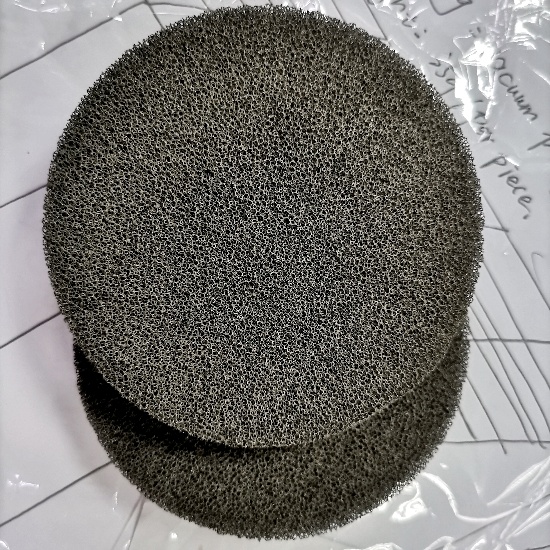

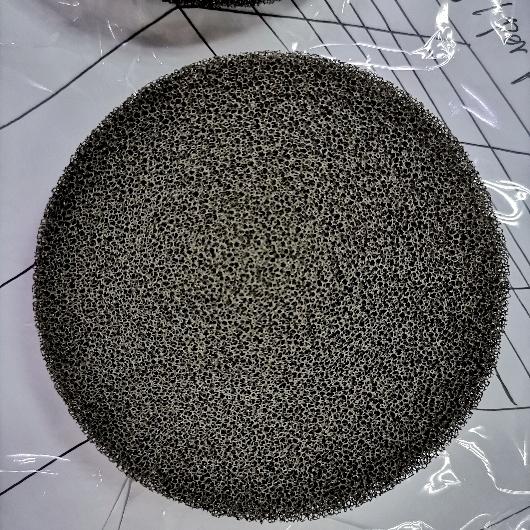

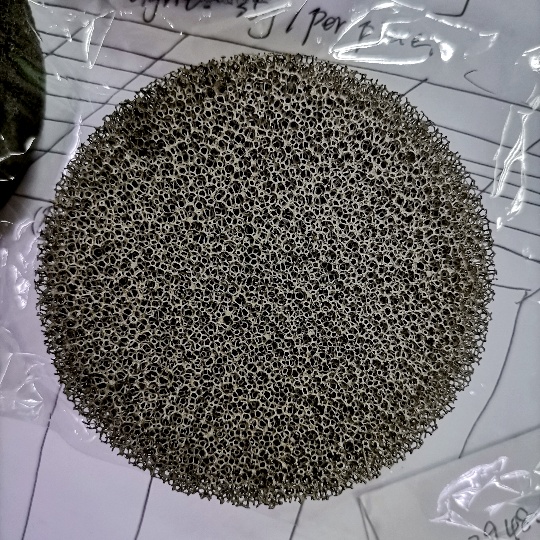

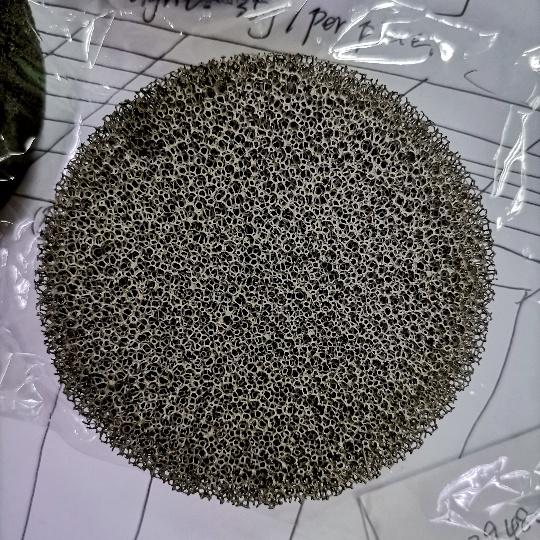

10-150PPI Mti Nickel Foams Sheet With Low Cost
Introduction
Our Nickel Foam Sheet has many advantages:
1. Sound absorption: Porous structures have a wide frequency absorption characteristic.
2. Sound insulation: Through additional processing, it is possible to intercept high noise and achieve good sound insulation effect.
3. Electronic wave shielding: Shielding against electronic waves of around 90dB.
4. Processing performance: capable of cutting, bending, and simple adhesion.
5. Fire resistance: Maintain stable shape, difficult to burn at high temperatures, and resistant to high temperatures.
6. Strong thermal conductivity.
7. Good breathability, filtering function, and super stable flow performance of gases and fluids.
8. High temperature resistance above 1100 degrees, uniform pore structure, fast heating and heat transfer.
Specifications
Type |
Open cell |
Purity |
> 99% |
Form |
Sheet or Roll, depending on size & thickness |

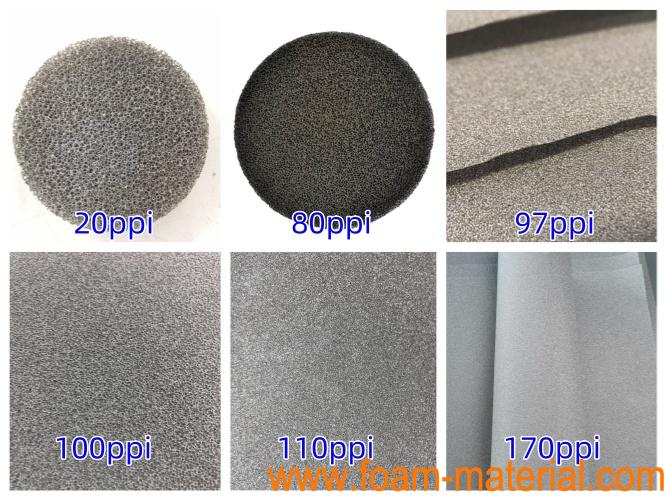

Cell Size (PPI) |
10-150PPI, as per request |
Thickness |
0.08mm~30mm |
Size & Shape |
Standard: 500*500mm/ 200*300mm/ 100*100mm; can be made in different shape as per request |
Porosity |
95%-98% |
Open Cell Rate |
≥98 % |
Volume Density |
>0.1g/cm3, as per request |
Surface Density |
200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) |
>3W/M.K |
Mechanical Strength (Theoretical) |
≥2~7MPa |
Tensile Strength (Theoretical) |
8~50MPa |
Temperature Resistance (Theoretical) |
≥500℃ |
Dimension (Thickness* Length*Width)
0.08mm*300mm*200mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
0.5mm*200mm*300mm |
0.7mm*200mm*300mm |
0.9mm*200mm*300mm |
1.0mm*200mm*300mm |
1.3mm*200mm*300mm |
1.5mm*200mm*300mm |
1.7mm*200mm*300mm |
2.0mm*200mm*300mm |
5mm*200mm*300mm |
10mm*200mm*300mm |
30mm*200mm*300mm |
The size can be customized |
To customize various metal foams, please click the picture below for details:
