85%Ag-15%Ni Silver-Nickel Alloy Metal Foam For Filtration and Sterilization

Wechat:cqn18259791571

Skype and Whatsapp :+8615663684452

Email: Daisy@foam-material.com



  • item no :

    ZOPIN-ANF
  • moq :

    1
  • lead date :

    In Stock
  • payment:

    Credit Card L/C D/A D/P T/T Western Union
product details

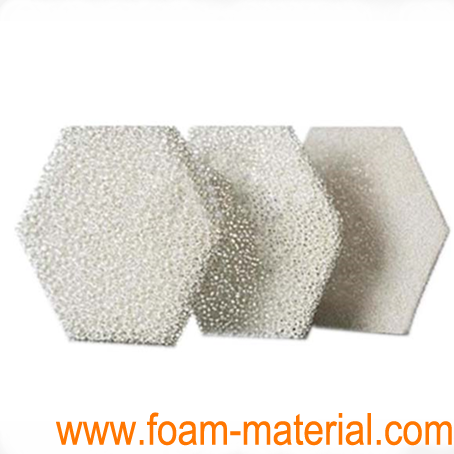

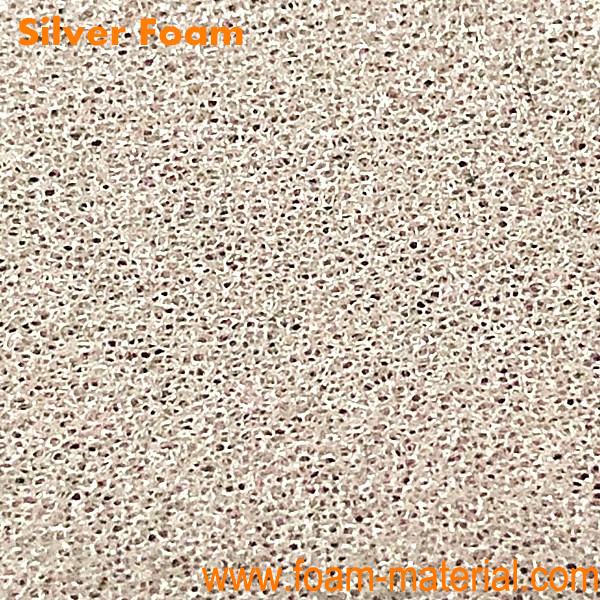

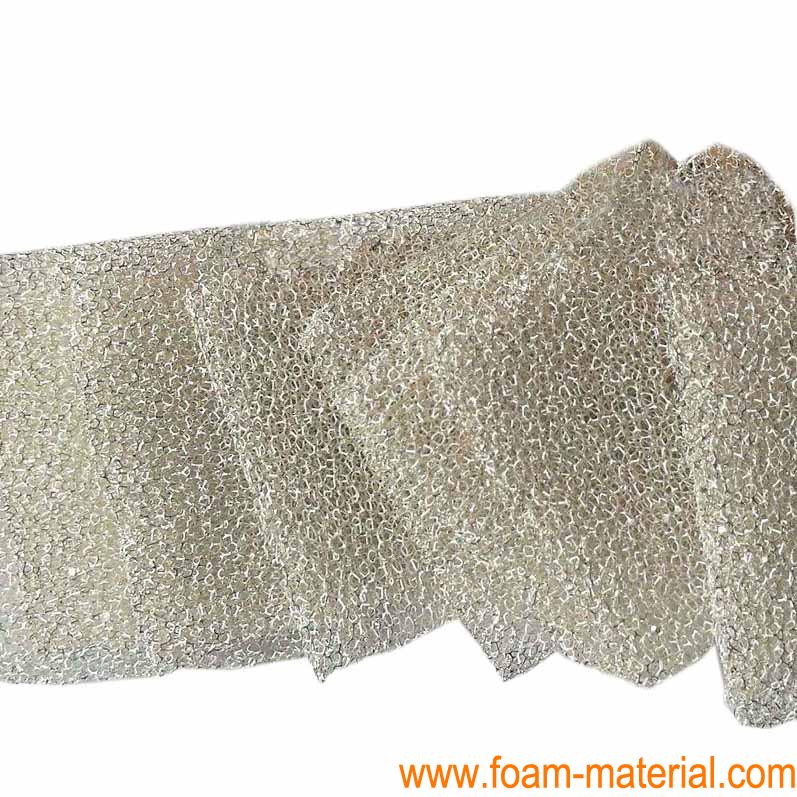

85%Ag-15%Ni Silver-Nickel Alloy Metal Foam For Filtration and Sterilization

Main feature
1) silver foam has excellent thermal conductivity and can be widely used for heat conduction and heat dissipation of motors/electrical appliances and electronic components
2) silver foam has good electrical conductivity, and its application in nickel-zinc batteries and electrical double-layer capacitors is also being valued by the industry
3) Due to the structural characteristics of silver foam and its basically harmless characteristics to the human body, silver foam is also an excellent medical filter material and water purification filter material.

Application areas:
(1) Electrical comparison materials. The excellent electrical conductivity makes foamed copper widely used in nickel-zinc batteries, electric double-layer capacitors and other new battery skeleton materials. At present, foamed silver has been tried by many nickel-zinc battery manufacturers and put into mass use. Silver foam is expected to be popularized and applied as a current collector for electric double layer capacitors; in addition, silver foam is also used as a material for electrolytic recovery of silver-containing wastewater, which also has a very broad prospect.
(2) Catalyst. In many chemical reactions in agricultural production systems, people try to directly replace the perforated silver plate with silver foam with a large specific surface area as a chemical reaction catalyst; silver foam has also been successfully used as a photocatalytic air purification carrier.
(3) Thermally conductive material. Silver foam has excellent thermal conductivity, making it a good flame retardant material, and has been used in many advanced fire fighting equipment abroad, especially as flame isolation equipment. In addition, people use the excellent thermal conductivity of silver foam And apparent permeability, it is made into heat dissipation material for motors and electrical appliances.

(4) Noise reduction and shielding materials. The sound wave is diffusely reflected on the surface of the silver foam, and the effect of noise reduction is achieved through the principles of expansion noise reduction and microporous noise reduction. The shielding performance of copper is close to that of silver, and it is an electromagnetic shielding material with good performance.
(5) Filter material. Excellent structural properties and basically harmless to human body, silver foam products have also been successfully used as medical filter materials; meanwhile, silver foam has good prospects for application in water purification devices.

(6) Fluid pressure buffer material. The dispersion and buffering effect of foamed silver on fluid makes it a good effect as a decompression protection device for various pressure instruments.

Specifications

Applicable for Conductive Electrode Substrate.

Pore size: 100 microns
color: White
Thickness: 0.1-5mm
Porosity: 50%-60%
Bulk density: 0.1-0.8g/cm3

Thickness

1.0mm (can be customized)

Porosity

≥85%

Length

100mm

Width

100mm

Net Weight

21g

Specific Surface area

≥10 square / g

Tensile Strength Lengthwise≥1.25N/mm^2; Widthwise≥1.00N/mm^2


Reference dimensions

0.1mm*200mm*300mm

0.2mm*200mm*300mm

0.3mm*200mm*300mm

0.4mm*200mm*300mm

0.5mm*200mm*300mm

0.6mm*200mm*300mm

0.8mm*200mm*300mm

1mm*200mm*300mm

The size can be customized




ag-ni alloy foam


ag foam


Ag Foam


To customize various metal foams, please click the picture below for details:






Aiuminum Foam


Copper Foam





Nickel Foam





Carbon Foam





   3D Graphene Foam

Sliver Foam

                Ti Foam





Sliver foam
