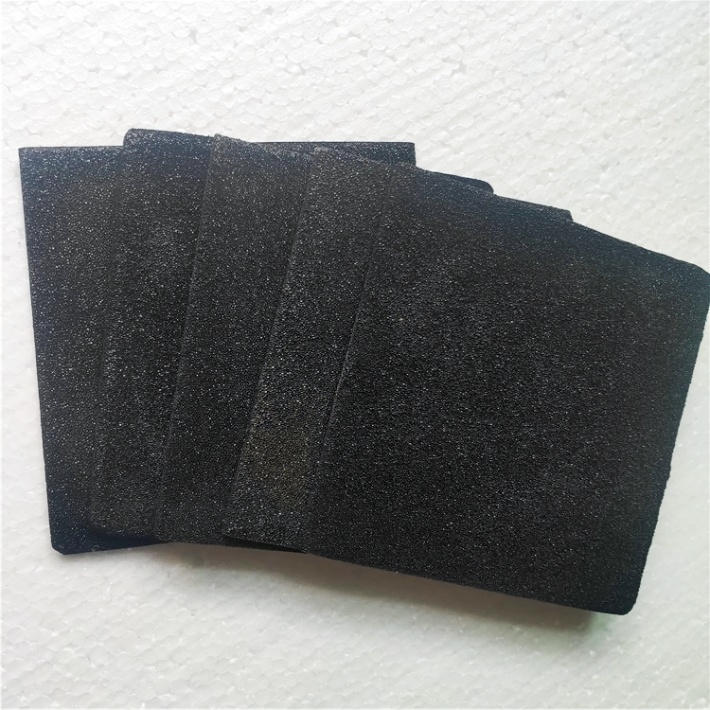

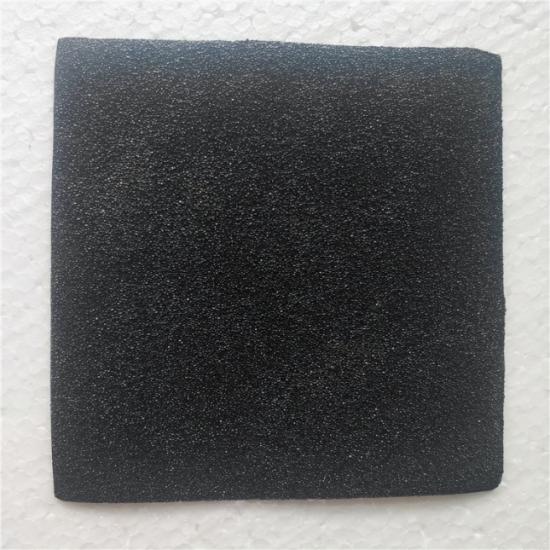

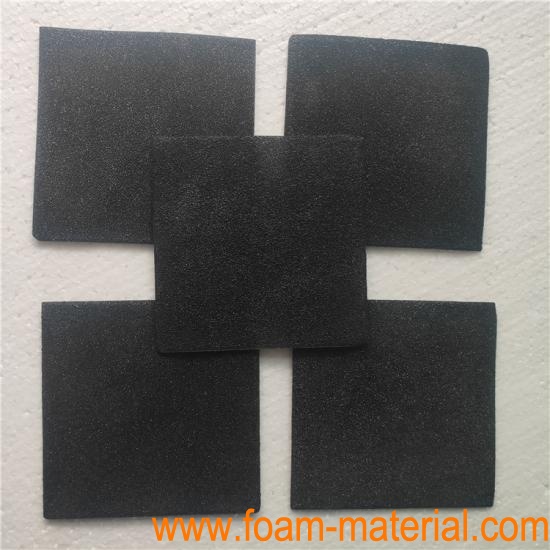

High Thermal Conductivity Carbon Foam C Metal Foam for Lab Research


Characteristic

In addition to the conventional properties of carbon materials, carbon fiber foam also has the characteristics of low density, high strength, thermal shock resistance, easy processing, and good physical and chemical properties such as electrical conductivity, thermal conductivity, and wave absorption.
1. Low density, high strength
2. It can be made into high or low thermal conductivity materials
3. It has good thermal shock resistance and can resist the shock of temperature sudden change of

    1250 ℃
4. High temperature and corrosion resistance
5. Pore size can be foamed according to customer's requirements


Technical indicators


Thickness

0.1-25mm

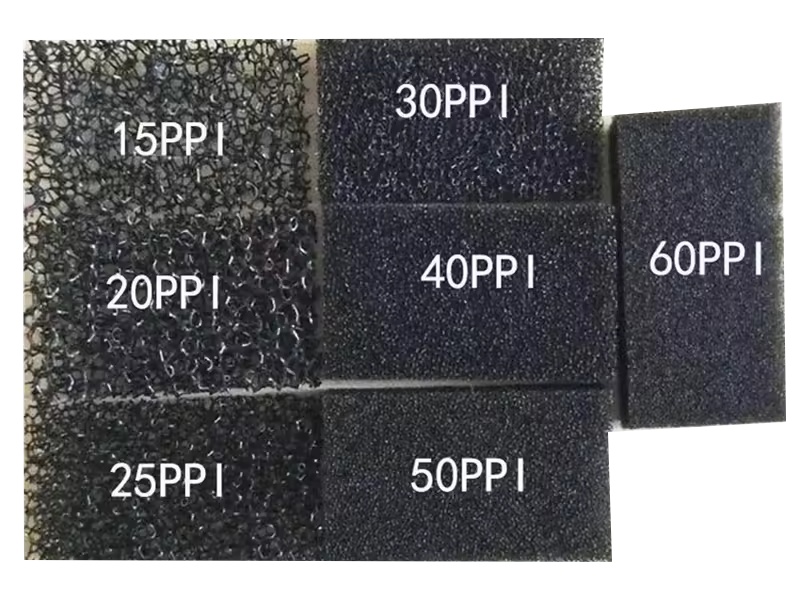

Pore Size(PPI)

15/20/30/50/90/100

Purity(%)

99.99

Porosity(%)

50-98

Surface desity(g/m2)

280-3000

Size(mm)

10x10, 50x50,100x100, 200x200,

Can be customized

Density(g/cm3)

0.2~1.0

Compressive strength(Mpa)

8~12

Tensile modulus(Mpa)

300~500

Thermal expansion coefficient (ppm/℃)

5.0

Thermal conductivity(W/m.k)

25~80

Resistivity(Ω·m)

1.0×10﹣2~10﹣5

Maximum operating temperature

600 ℃ (in air)

3000 ℃ (in inert gas)


Dimensions

0.5mm*100mm*100mm

0.6mm*100mm*100mm

0.7mm*100mm*100mm

0.8mm*100mm*100mm

0.9mm*100mm*100mm

1.0mm*100mm*100mm

1.2mm*100mm*100mm

1.5mm*100mm*100mm

2.0mm*100mm*100mm

2.5mm*100mm*100mm

3.0mm*100mm*100mm

The size can be customized


To customize various metal foams, please click the picture below for details：

  https://www.foam-material.com/copper-foam_c135


Copper Foam




Nickel Foam




Ti Foam




Aluminum Foam



Iron Nickel Foam



Carbon Foam

Silver Foam

Cobalt Foam

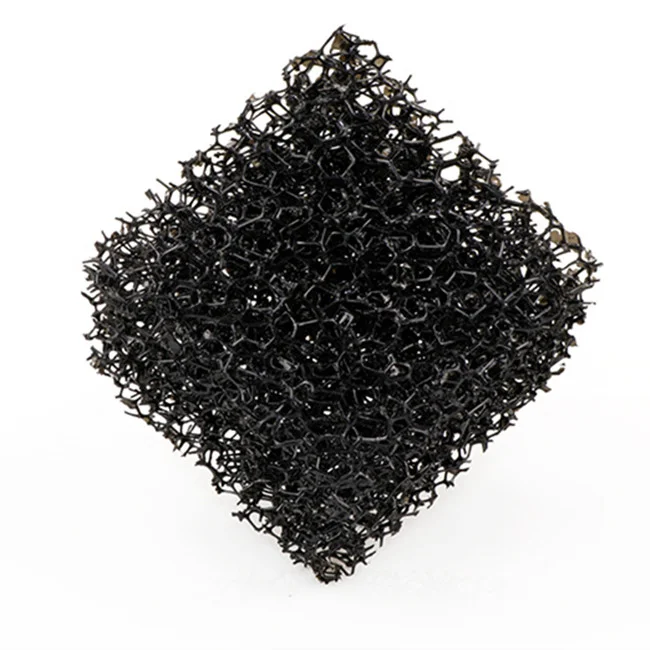

Carbon foam

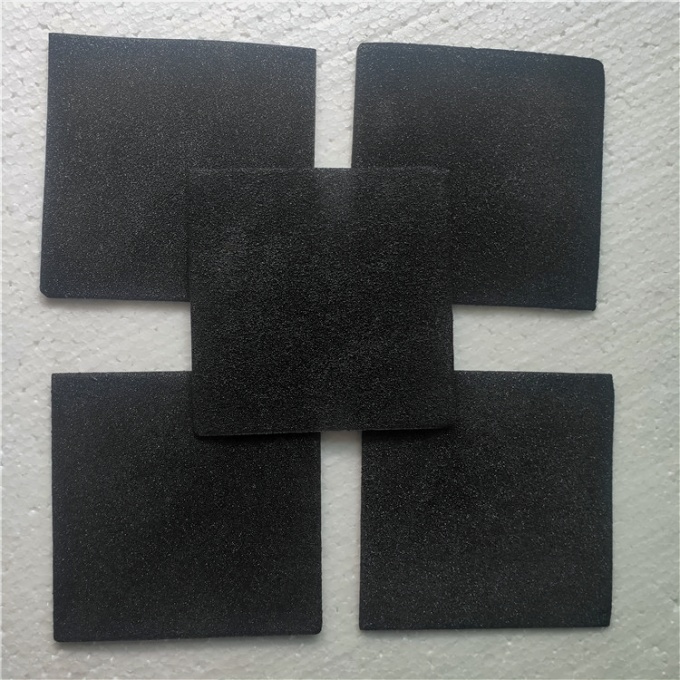

carbon foam for sale


carbon foam for sale

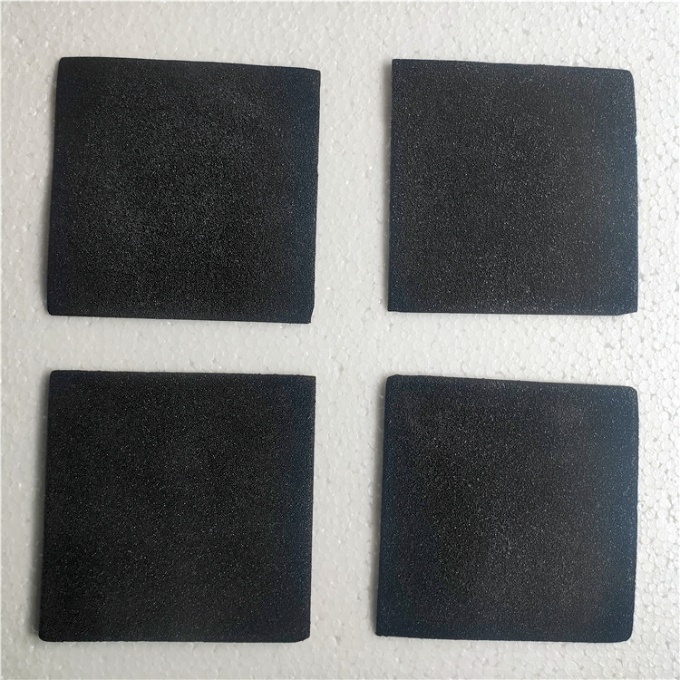

carbon foam manufacturers


carbon foam manufacturers

carbon foam

carbon foam for sale



Sliver foam
