Size Customizable Carbon Metal Foam Electrode Sheet

Wechat:cqn18259791571

Skype and Whatsapp :+8615663684452

Email: Daisy@foam-material.com



  • item no :

    ZOPIN
  • moq :

    1
  • lead date :

    In Stock
  • payment:

    Credit Card L/C D/A D/P T/T Western Union
product details


Size Customizable Carbon Metal Foam Electrode Sheet


Characteristic

1. Low density, high strength
2. It can be made into high or low thermal conductivity materials
3. It has good thermal shock resistance and can resist the shock of temperature sudden change of 1 250 ℃
4. High temperature and corrosion resistance

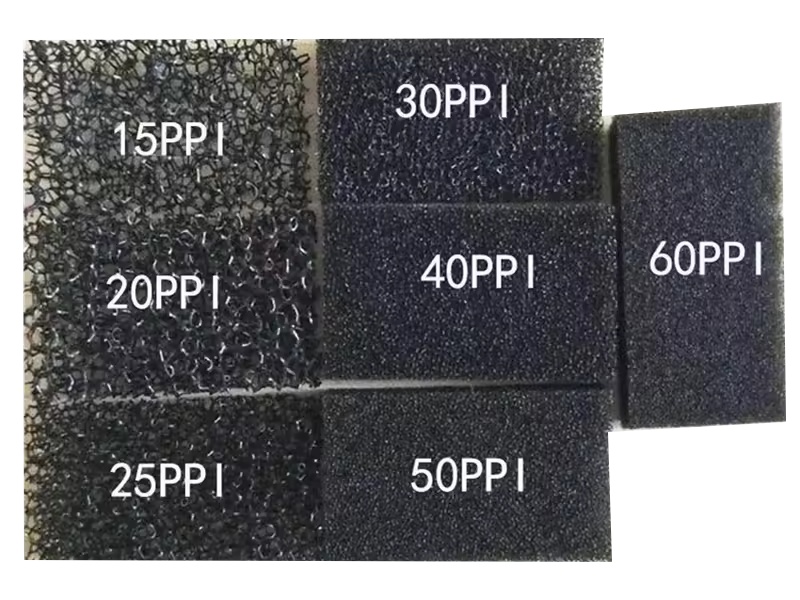

5. Pore size can be foamed according to customer's requirements
6, the processing performance is good, can use all kinds of common adhesives to bond, so that the carbon foam block is not restricted, and more easily formed a complex structure, on the surface of the carbon foam can be plated metal materials.
7. Flexible material design. The performance design can be changed in a wide range, and the performance of the foam carbon can be achieved by engineering methods to meet the needs of different density, hole and hole connection.

Technical indicators:

Density: 0.2 ~ 1.0g/cm3

porosity: 30 ~ 80%
Aperture: 0.01-6mm

Compressive strength: 8-12mpa
Compression modulus: 300-620mpa

Tensile strength: 2-5mpa
Tensile modulus: 300 ~ 500MPa

thermal expansion coefficient: 5.0ppm / ℃
Thermal conductivity: 25 ~ 80W / m.k

Resistivity: 1.0 × 10-2 ~ 10-5 Ω· M
Maximum operating temperature: 600 ℃ (in air), 3000 ℃ (in inert gas)

0.5mm*200mm*300mm

1mm*200mm*300mm

1.5mm*200mm*300mm

2mm*200mm*300mm

2.5mm*200mm*300mm

3mm*200mm*300mm

4mm*200mm*300mm

5mm*200mm*300mm

6mm*200mm*300mm

7mm*200mm*300mm

8 to 10mm*20mm*300mm

The size can be customized

Carbon Metal foam


Carbon foam


Carbon Foam


Carbon Foam



To customize various metal foams, please click the picture below for details:





Aiuminum Foam


Copper Foam





Nickel Foam





Carbon Foam





   3D Graphene Foam

Sliver Foam

                Ti Foam




Sliver foam
