0.08mm-30mm Thickness Nickel Foam Graphene Battery Inco
Introduction
1. This product uses nickel metal foam as the carrier, with stable performance, large specific surface area and high catalytic efficiency, and is widely used in air conditioners, air purifiers, hospitals and other fields.
2. Compared with traditional aluminum based honeycomb networks, the effective contact area has been greatly increased, and the ability to receive ultraviolet light has also been greatly improved. The coarse pore sponge filter is made by processing ordinary open cell soft foam through mesh processing. The mesh processing removes the original facial mask or wall film between foam networks, and obtains the main skeleton mesh structure. The porosity of the foam plastic is up to 97%, which has excellent air permeability, good flexibility and high mechanical strength.
3. Foam nickel production uses mesh foam as filter material, which has the advantages of low flow resistance and high filtration rate. Can effectively filter out particles with a diameter of 15UM. Mesh bubbles have many special uses, such as being used as filtering materials, fuel tank filling materials, and fabric processing materials.
Specifications
Type |
Open cell |
Purity |
> 99% |
Form |

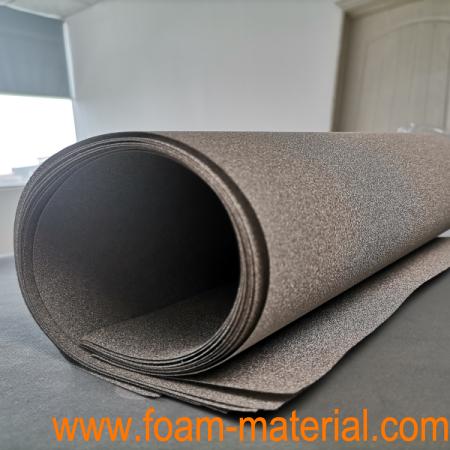

Sheet or Roll, depending on size & thickness |

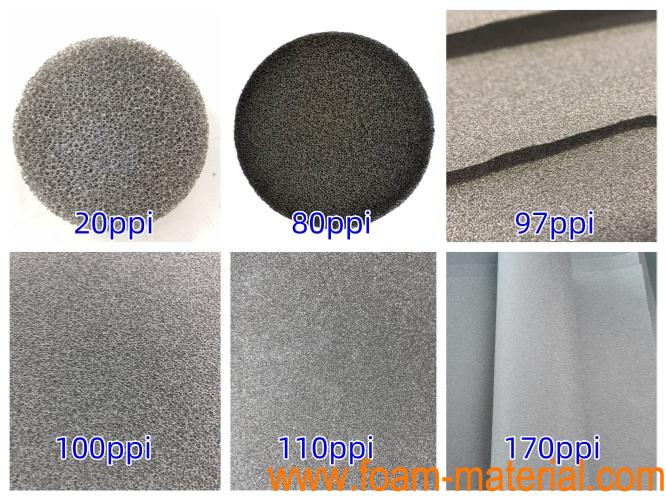

Cell Size (PPI) |
10-150PPI, as per request |
Thickness |
0.08mm~30mm |
Size & Shape |
Standard: 500*500mm/ 200*300mm/ 100*100mm; can be made in different shape as per request |
Porosity |
95%-98% |
Open Cell Rate |
≥98 % |
Volume Density |
>0.1g/cm3, as per request |
Surface Density |
200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) |
>3W/M.K |
Mechanical Strength (Theoretical) |
≥2~7MPa |
Tensile Strength (Theoretical) |
8~50MPa |
Temperature Resistance (Theoretical) |
≥500℃ |
Dimension (Thickness* Length*Width)
0.08mm*300mm*200mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
0.5mm*200mm*300mm |
0.7mm*200mm*300mm |
0.9mm*200mm*300mm |
1.0mm*200mm*300mm |
1.3mm*200mm*300mm |
1.5mm*200mm*300mm |
1.7mm*200mm*300mm |
2.0mm*200mm*300mm |
5mm*200mm*300mm |
10mm*200mm*300mm |
30mm*200mm*300mm |
The size can be customized |
To customize various metal foams, please click the picture below for details:
