Porous Nickel Foam Production Suppliers With Low Price For Battery

hot products
Nickel Foams Nickel Foams Nickel Foams

Porous Nickel Foam Production Suppliers With Low Price For Battery

Wechat:18832681205

Whatsapp :+86 18832681205

Email: Daisy@foam-material.com

  • item no :

    ZOPIN-NF26

  • moq :

    1

  • lead date :

    In Stock

  • payment:

    Credit Card L/C D/A D/P T/T Western Union
contact now
product details


Porous Nickel Foam Production Suppliers With Low Price For Battery




Introduction

1. This product uses nickel foam production as the carrier, with stable performance, large specific surface area and high catalytic efficiency, and is widely used in air conditioners, air purifiers, hospitals and other fields.
 2. Compared with traditional aluminum based honeycomb networks, the effective contact area has been greatly increased, and the ability to receive ultraviolet light has also been greatly improved. The coarse pore sponge filter is made by processing ordinary open cell soft foam through mesh processing. The mesh processing removes the original facial mask or wall film between foam networks, and obtains the main skeleton mesh structure. The porosity of the foam plastic is up to 97%, which has excellent air permeability, good flexibility and high mechanical strength.
3. Nickel foam battery uses mesh foam as filter material, which has the advantages of low flow resistance and high filtration rate. Can effectively filter out particles with a diameter of 15UM. Mesh bubbles have many special uses, such as being used as filtering materials, fuel tank filling materials, and fabric processing materials.


Specifications

Type

Open cell

Purity

> 99.99%

Form

Sheet or Roll, depending on size & thickness

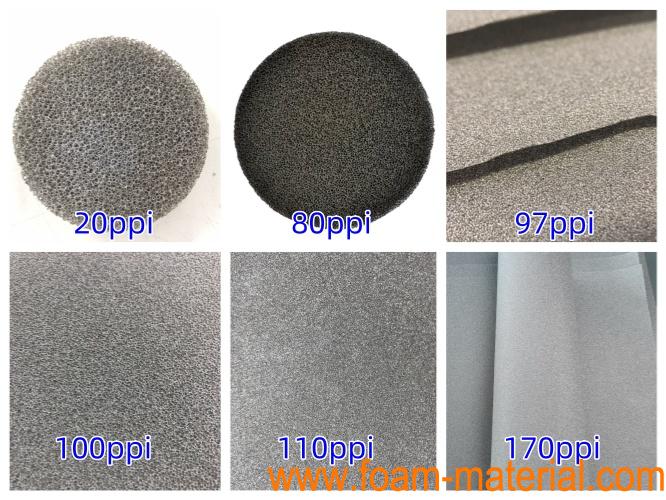

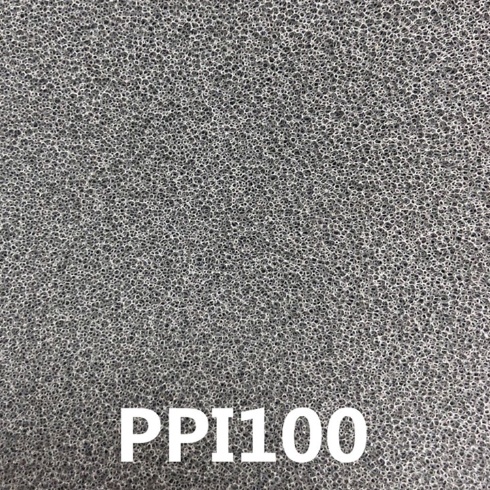

Cell Size (PPI)

5-1300PPI, as per request

Thickness

Standard: 0.08-30mm

Size & Shape

Standard: 500*500mm/ 200*300mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-3500 g/m 2, as per request

Standard: 320±20g/m2

Thermal Conductivity (Theoretical)

>3W/M.K

Mechanical Strength (Theoretical)

≥2~7MPa

Average Tensile Strength (N/20mm)

Vertical ≥ 30, horizontal ≥ 25

Temperature Resistance (Theoretical)

≥500℃,as per request

Appearance

Silver gray, without defects such as black spots, blind holes, through holes, cracks, etc

Chemical Composition

Ni: ≥99.5% Fe≤0.020% C≤0.030% P≤0.010%  S≤0.008%  Si≤0.005% Cu≤0.010%

Shielding Effectiveness

200KHz

40dB~50dB

Flexibility

Vertical ≥ 5, horizontal ≥ 15

Elongation rate (%)

Vertical ≥ 5, horizontal ≥ 10

Electrical resistivity (m Ω/100 * 10m2)

Vertical ≤ 65, horizontal ≤85


Dimension (Thickness* Length*Width)

0.08mm*300mm*200mm

0.2mm*200mm*300mm

0.3mm*200mm*300mm

0.5mm*200mm*300mm

0.7mm*200mm*300mm

0.9mm*200mm*300mm

1.0mm*200mm*300mm

1.3mm*200mm*300mm

1.5mm*200mm*300mm

1.7mm*200mm*300mm

2.0mm*200mm*300mm

5mm*200mm*300mm

10mm*200mm*300mm

30mm*200mm*300mm

The size can be customized


To customize various metal foams, please click the picture below for details：

  https://www.foam-material.com/copper-foam_c135


Copper Foam




Nickel Foam




Ti Foam




Aluminum Foam



Iron Nickel Foam



Carbon Foam

Silver Foam

Cobalt Foam





nickel metal foam


nickel foam electrode



foam nickel



foamed nickel

nickel foam production
