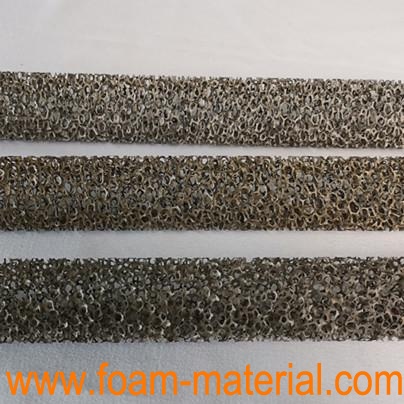

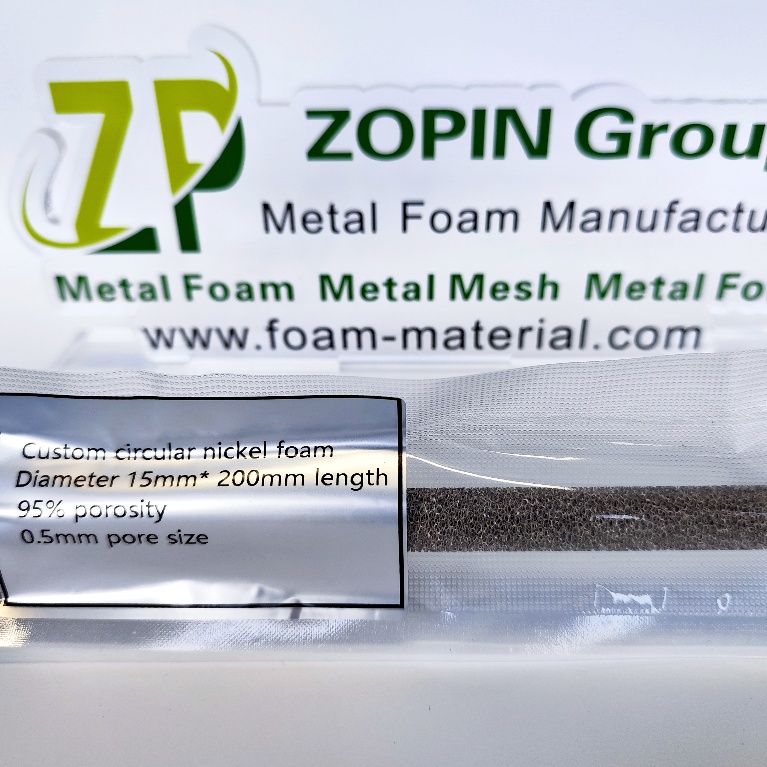

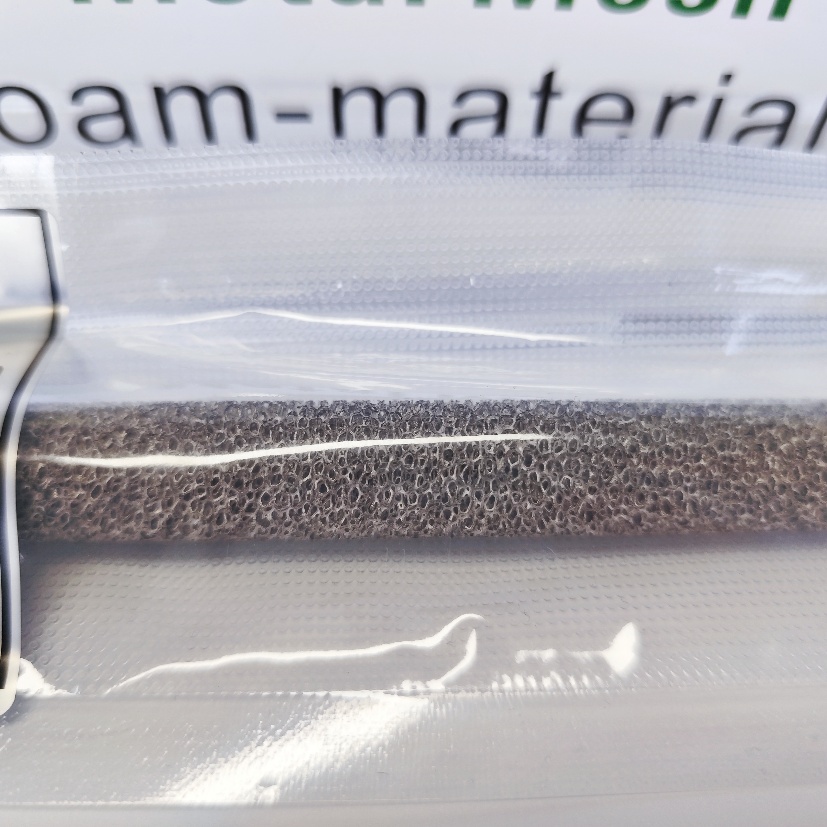

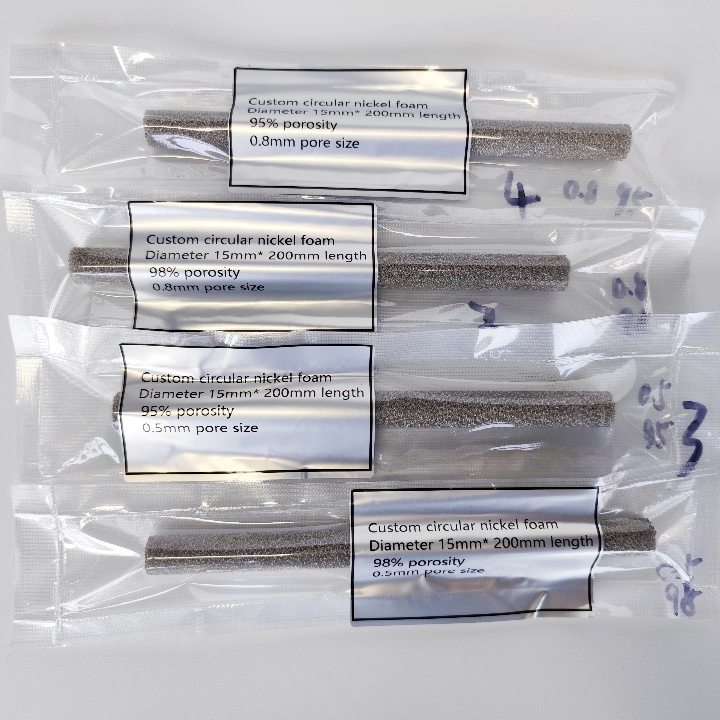

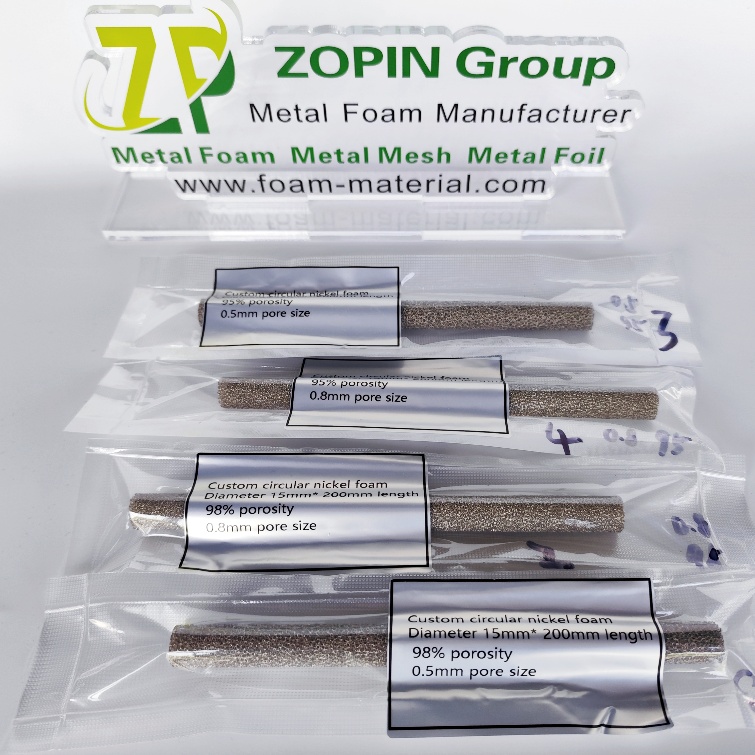

Customized cylindrical Nickel Foam Ni Foam Nickel Metal Foam

Introduction

Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.

Usefulness: (Various shapes can be produced)

1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.

2. Filtration materials of air / oil / smoke etc.

3. Porous electrode in Galvano-Chemistry Engineering.

4. Elimination of heat.

5. Amortization materials.

6. Noise-Absorbing and Vibration-Absorbing materials.

7. Electromagnetic shielding materials.

8. Catalyst carrier.

9. Precious metal recovery.

Specifications

Type	Open cell
Purity	> 99.99%
Form	Sheet or Roll, depending on size & thickness

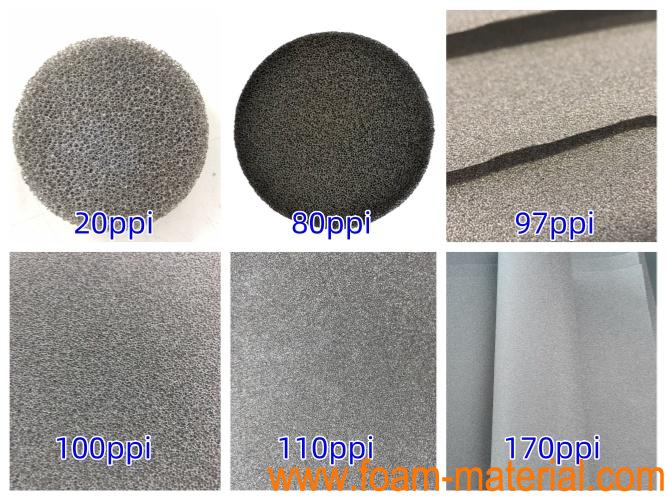

Cell Size (PPI)	5-1300PPI, as per request
Thickness	Standard: 0.08-30mm
Size & Shape	Standard: 500*500mm/ 200*300mm; can be made in different shape as per request
Porosity	95%-98%
Open Cell Rate	≥98 %
Volume Density	>0.1g/cm3, as per request
Surface Density	200-3500 g/m 2, as per request Standard: 320±20g/m2
Thermal Conductivity (Theoretical)	>3W/M.K
Mechanical Strength (Theoretical)	≥2~7MPa
Average Tensile Strength (N/20mm)	Vertical ≥ 30, horizontal ≥ 25
Temperature Resistance (Theoretical)	≥500℃,as per request
Appearance	Silver gray, without defects such as black spots, blind holes, through holes, cracks, etc
Chemical Composition	Ni: ≥99.5% Fe≤0.020% C≤0.030% P≤0.010%  S≤0.008%  Si≤0.005% Cu≤0.010%
Shielding Effectiveness	200KHz
	40dB~50dB
Flexibility	Vertical ≥ 5, horizontal ≥ 15
Elongation rate (%)	Vertical ≥ 5, horizontal ≥ 10
Electrical resistivity (m Ω/100 * 10m2)	Vertical ≤ 65, horizontal ≤85



Reference dimensions

To customize various metal foams, please click the picture below for details：
