High Conductivity and High Purity Nickel Foam Ni Metal Foam Used in Battery Electrode Research


Introduction

Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.

Usefulness: (Various shapes can be produced)

1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.

2. Filtration materials of air / oil / smoke etc.

3. Porous electrode in Galvano-Chemistry Engineering.

4. Elimination of heat.

5. Amortization materials.

6. Noise-Absorbing and Vibration-Absorbing materials.

7. Electromagnetic shielding materials.

8. Catalyst carrier.

9. Precious metal recovery.

Specifications

Type

Open cell

Purity

> 99%

Form

Sheet or Roll, depending on size & thickness

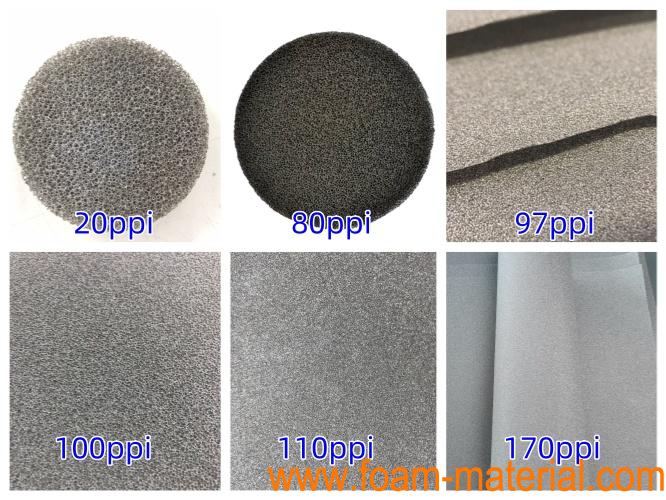

Cell Size (PPI)

10-150PPI, as per request

Thickness

Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request

Size & Shape

Standard: 500*500mm/ 200*300mm; can be made in different shape as per request

Porosity

95%-98%

Open Cell Rate

≥98 %

Volume Density

>0.1g/cm3, as per request

Surface Density

200-2500 g/m ^2, as per request

Thermal Conductivity (Theoretical)

>3W/M.K

Mechanical Strength (Theoretical)

≥2~7MPa

Tensile Strength (Theoretical)

8~50MPa

Temperature Resistance (Theoretical)

≥500℃


0.1mm*200mm*300mm

0.2mm*200mm*300mm

0.3mm*200mm*300mm

0.5mm to 1.7mm*200mm*300mm

2mm*200mm*300mm

3 to 4mm*200mm*300mm

5mm*200mm*300mm

6mm*200mm*300mm

8mm*200mm*300mm

10mm*200mm*300mm

10 to 20mm*200mm*300mm

The size can be customized




Nickel Foam


Nickel Foam


Ni Metal Foam


Ni FOAM


Nickel foam


Nickel Foam


To customize various metal foams, please click the picture below for details：





Aiuminum Foam


Copper Foam





Nickel Foam





Carbon Foam





   3D Graphene Foam

Sliver Foam

                Ti Foam
