The main performance parameters

Product Name:

CdS single crystal substrate

Growth method

PVT

Crystal Structure :

Hexagonal system

Lattice constant:

Melting point:

1287 ℃

Density:

4.821 g/cm³

Heat capacity(J /g.k)

0.3814

Thermal expansion coefficient(10-6/K)

4.6 // a 2.5 // c

Thermal Conductivity( W /m.k at 300K )

2.7

Transparent wavelength( um)

2.5 ~ 15 (>71%)

Refractive index

1.708 (o) 1.723 (e)

Orientation

 <0001> ±0.5º

Standard Size

10x10x0.5mm, 5x5x0.5mm

Polishing

One side polished or Two side polished

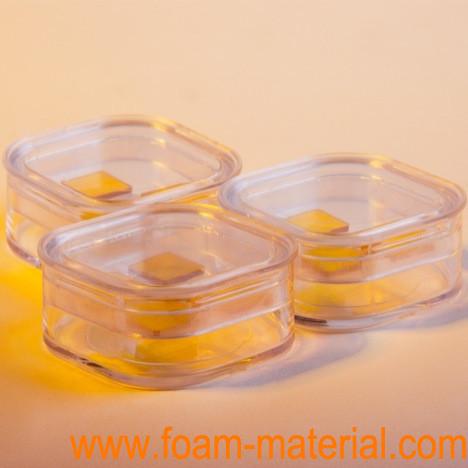

Packing

class-100 clean bag, in class-1000 clean room
