Lithium gallate LiGaO2 single crystal substrate

hot products
LiGaO2 substrate

Lithium gallate LiGaO2 single crystal substrate

Wechat:18832681205

Whatsapp :+86 18832681205

Email: Daisy@foam-material.com

  • item no :

    LiGaO2

  • moq :

    1

  • lead date :

    In Stock

  • payment:

    Credit Card L/C D/A D/P T/T Western Union
contact now
product details

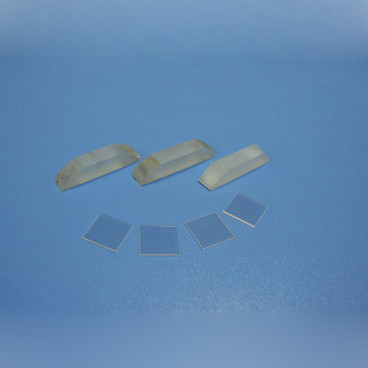

Lithium gallate LiGaO2 single crystal substrate


Lithium gallate LiGaO2 single crystal substrate have a very good lattice matching for GaN (mismatch < 0.2%), and are chemically stable at high temperatures and low in cost , thus becoming a potential III-V Nitride thin film substrate material.

Lithium gallate(LiGaO2 ) and lithium aluminate(LiAlO2) single crystal are the best substrate materials for matching with GaN epitaxial films. GaN films are the basis for the current production of blue, violet, ultraviolet light-emitting diodes and solid-state white light sources.


The main performance parameters

Product Name:

LiGaO2 single crystal substrate

Growth method

Czochralski method

Crystal Structure :

Orthogonal system

Lattice constant:

a=5.406 Å b=5.012 Å c=6.379 Å

Melting point:

1600 ℃

Density:

4.18g/cm3

Mohs hardness

7.5

Orientation

 <100>, <001>

Standard Size

10x10x0.5mm, 5x5x0.5mm

Polishing

Single side polished or Double side polished

Packing

class-100 clean bag, in class-1000 clean room

Application

LiGaO2 substrate and GaN film are well matched, and can obtain a good gallium nitride film


LiGaO2 substrate

tags : LiGaO2 substrate Lithium gallate crystal single crystal substrate
