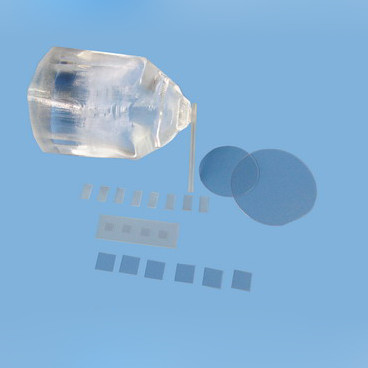

Magnesium aluminate (MgAl2O4) single crystals are widely used in sonic and microwave devices and in the production of epitaxial MgAl2O4 substrates of III-V nitride devices. The MgAl2O4 crystal was previously difficult to grow because it is difficult to maintain its single crystal structure, but at present we have been able to provide high quality ang 2 inch diameter MgAl2O4 crystals.
|
The main performance parameters |
|
|
Product Name |
Magnesium aluminate(MgAl2O4) single crystal substrate |
|
Crystal structure |
Cubic |
|
Lattice constant |
a = 8.085Å |
|
Growth method |
Czochralski |
|
Melting point (℃) |
2130 ℃ |
|
Density |
3.64g/cm(3) |
|
Mohs hardness |
8 Mohs |
|
Color |
White translucent |
|
Propagation loss (9GHz) |
6.5 db/us |
|
Thermal expansion coefficient |
7.45 × 10 (-6) / ℃ |
|
Package |
class-100 clean bag in class-1000 clean room |
| Standard Specification | |||||
| Product Name | Orientation | Standard Size | Thickness | Polishing | |
| MgAl2O4 substrate |
<100> ±0.5° <110> ±0.5° <111> ±0.5° Or other off-angle |
10x10mm 10x5mm 5x5mm φ2" x 0.5mm Or others |
0.1mm 0.2mm 0.5mm 1.0mm 2.0mm Or others |
Fine ground Single side polished Double side polished Roughness: Ra<5A(0.5nm) |
