item no :
KTaO3-substratemoq :
1lead date :
In Stockpayment:
Credit Card L/C D/A D/P T/T Western Union

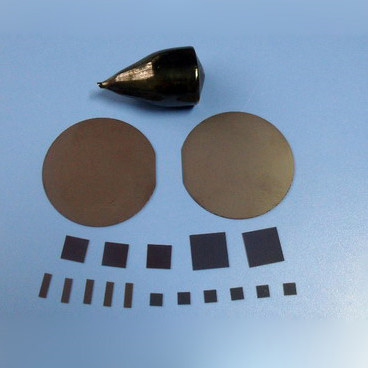

Neodymium gallate, NdGaO3 substrate, NdGaO3 crystal is a new single-crystal substrate materials developed in recent years, NdGaO3 are mainly used for high-temperature superconductors (YBCO) and magnetic's Epitaxial films growth, Because NdGaO3 and YBCO with the small lattice mismatch (~ 0.27%), and no structural phase change.
|
The main performance parameters |
|
|
Product Name
|
NdGaO3 single crystal substrate
|
|
Crystal Structure
|
Orthogonal
|
|
Lattice constant
|
a=5.43、b=5.50、c=7.71
|
|
Melt point（℃）
|
1600℃
|
|
Density
|
7.57g/cm3
|
|
Dielectric constants
|
25
|
|
Growth method
|
Czochralski method
|
|
Packing
|
class-100 clean bag, class-1000 clean room
|
| Standard Specification | |||||
| Product Name | Orientation | Standard Size | Thickness | Polishing | |
| NdGaO3 substrate |
<001> ±0.5° <100> ±0.5° <011> ±0.5° Or other off-angle |
10x10mm 10x5mm 5x5mm Or others |
0.1mm 0.2mm 0.5mm 1.0mm 2.0mm Or others |
Fine ground Single side polished Double side polished Roughness: Ra<5A(0.5nm) |
Inquiry Online |
