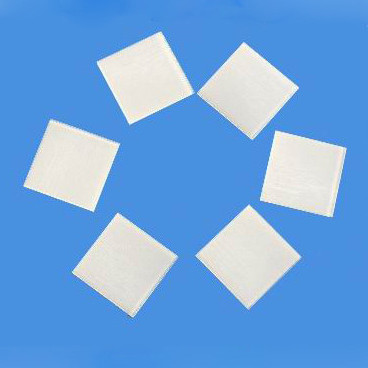

Lithium Aluminate Wafer LiAlO2 Single Crystal substrate

hot products
LiAlO2 Single Crystal substrate

Lithium Aluminate Wafer LiAlO2 Single Crystal substrate

Wechat:18832681205

Whatsapp :+86 18832681205

Email: Daisy@foam-material.com

  • item no :

    LiAlO2

  • moq :

    1

  • lead date :

    In Stock

  • payment:

    Credit Card L/C D/A D/P T/T Western Union
contact now
product details

Lithium Aluminate Wafer LiAlO2 Single Crystal substrate

Lithium Aluminate single crystal with lower lattice mismatch rate to Gallium Nitride,  Thus becoming a high-quality substrate material of gallium nitride film, A potential film substrate material of  the III-V group nitride.




The main performance parameters

Product Name
LiAlO2 single crystal substrate
Crystal structure
Tetragonal system
Lattice constant
a=5.17 A    c=6.26 A
Melt point（℃）
1900
Density
2.62（g/cm3）
Hardness
7.5（mohs）
Special specification
We can customize specific specification upon requirements
Packing
class-100 clean bag，class-1000 clean room



Standard Specification
Product Name Orientation Standard Size Thickness Polishing
LiAlO2 substrate <100> ±0.5°
<001> ±0.5°
<110> ±0.5°
Or other off-angle 		10x10mm
10x5mm
5x5mm
φ2" x 0.5mm
Or others 		0.1mm
0.2mm
0.5mm
1.0mm
Or others 		Fine ground
Single side polished
Double side polished

Roughness: Ra<5A(0.5nm) 		Inquiry Online


LiAlO2 substrate
