item no :
Rutile(TiO2)moq :
1lead date :
In Stockpayment:
Credit Card L/C D/A D/P T/T Western Union

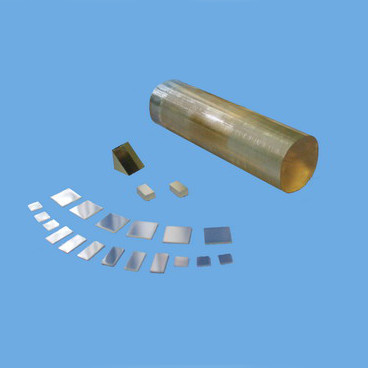

Optical grade rutile titanium dioxide (TiO2) single crystal substrate. Rutile large birefringence, large refractive index, Which is A good materials for spectral prism and polarizing device (such as optical isolators and the beam splitter). Compared with YVO4, The TiO2 crystals has a better physical and chemical stability.
|
The main performance parameters |
|
|
Product Name
|
Rutile(TiO2) single crystal substrate |
|
Crystal structure
|
Tetragonal system
|
|
Lattice constant
|
a=4.5936Å c=2.9582 Å
|
|
Growth method
|
Flame method, Floating zone method
|
|
Density
|
4.26（g/cm3）
|
|
Melting point
|
1870℃
|
|
Heat capacity
|
0.17（25℃）
|
|
Transmission
|
0.5～4.5um
|
|
Refractive index
|
no=2.47 ne=2.73 at λ=1.3um
|
|
Thermo optic coefficient
|
dη/dT：a：-0.72×106/k c：-0.42×10-6/k
|
|
Linear expansion coefficient
|
a：7.14×106 c：9.19×106
|
|
Hardness
|
7（mohs）
|
|
Maximum Crystal rod
|
Φ25mm×90mm
|
|
Tolerance and Optical quality
|
Size tolerance: +0.1 mm,
Thickness tolerance: ±0.05mm
Parallelism: <30", Flatness: <λ/4, Verticality: <30",
Surface finish: 40-20, 20-10, 10-5 or others (scratch-dig)
|
|
Packing
|
class-100 clean bag, class-1000 clean room
|
| Standard Specification | |||||
| Product Name | Orientation | Standard Size | Thickness | Polishing | |
| Rutile(TiO2) substrate |
<001> ±0.5° <100> ±0.5° <110> ±0.5° <111> ±0.5° Or other off-angle |
10x10mm 10x5mm 5x5mm φ12.7 x 0.5mm Or others |
0.1mm 0.2mm 0.5mm 1.0mm Or others |
Fine ground Single side Epi-polished Double side Epi-polished Double side optical-polished Roughness: Ra<5A(0.5nm) |
