item no :
NaClmoq :
1lead date :
In Stockpayment:
Credit Card L/C D/A D/P T/T Western Union

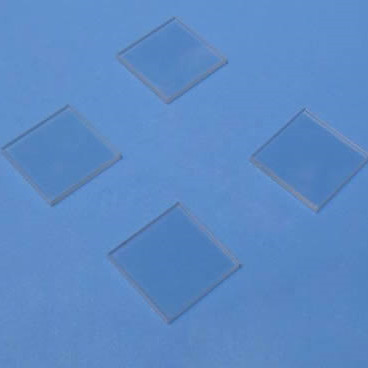

Sodium chloride, NaCl substrate. The wide-band good conductor used in ultraviolet to the infrared; Widely used in the production of infrared spectroscopy analyzer, Ultraviolet and infrared optical components. These single crystal is the material of optical elements, Can be used as transparent material of prisms, lenses, filters and various laser windows In the infrared devices and optical instruments.
The main performance parameters
Product Name
Sodium Chloride (NaCl)
Crystal structure
Cubic
Growth method
Crystallization method
Lattice parameters
a=5.642Å
Melting point
801℃
Density
2.16（g/cm3）
Mohs hardness
2
Wave band
0.25~22.00 μm
Index of refraction (nd)
1.54427
Nf (Impurity absorption peak)
0.01270
Deliquescence
NaCl is a water-soluble crystal, it is easily deliquescent and can not be polished by CMP
Packing
Independent vacuum packaging for each piece
| Standard Specification | |||||
| Product Name | Orientation | Standard Size | Thickness | Polishing | |
| NaCl substrate |
(100) <±2.0° (110) <±2.0° (111) <±2.0° Or other off-angle |
10x10x1.0mm 10x5mm 5x5mm 20x20mm φ1" x 1.0mm φ2" x 3.0mm φ4" x 5.0mm Or others |
1.0mm 2.0mm 3.0mm 5.0mm Or others |
Fine ground Single side polished Double side polished Surface finish: 60/40 or 80/50 Roughness: Ra<100A(10nm) Roughness: Ra<50A(5.0nm) |
Inquiry Online |
